Brand: Panduit
|
SKU:
PAN-LAMA600S-38-6Y
Panduit LAMA600S-38-6Y | Mechanical Connectors - Lugs | UPC - 07498359618
Regular price
$74.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LAMA600S-38-6Y | Mechanical Connectors - Lugs | UPC - 07498...
Regular price
$74.95
Unit price
Brand: Panduit
|
SKU:
PAN-LAMA600S-38-6Y
Regular price
$74.95
Unit price
Shipping calculated at checkout.
Description
Description

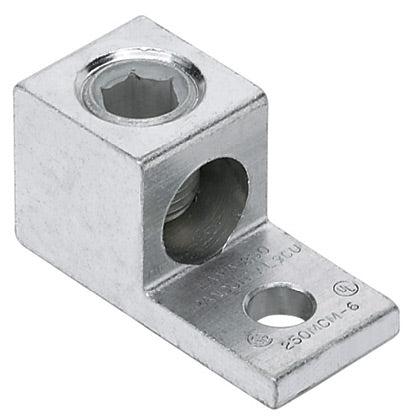

Panduit Mechanical Lug, Single Barrel, Series: LAMA, Stranded Aluminum/Copper Conductor, 4 AWG to 600 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1.5 in L x 1.38 in W x 0.31 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 3/8 in Hex, 1.31 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 2.81 in L x 1.38 in W x 1.81 in H Dimensions
Features + Benefits
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Inspection window to visually assure full conductor insertion
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Tin plated to inhibit corrosion
- Compact design saves space
Panduit LAMA600S-38-6Y | Mechanical Connectors - Lugs | UPC - 07498359618 Key Specs
| Note | LAMA600S-38-6Y replaces LAMA600S-38-6 |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Number of Holes | 1 |
| Tongue Type | Straight |
| Tongue Length (In.) | 1.5 |
| Tongue Length (mm) | 38.1 |
| Tongue Thickness (In.) | 0.31 |
| Tongue Thickness (mm) | 7.9 |
| Tongue Width (In.) | 1.38 |
| Tongue Width (mm) | 35.1 |
| Overall Height (In.) | 1.8 |
| Overall Height (mm) | 46 |
| Overall Length (In.) | 2.81 |
| Overall Length (mm) | 71.4 |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Hex Size (mm) | 9.5 |
| Sub Brand | Pan-Lug |
| Part Features | Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. |
Panduit LAMA600S-38-6Y | Mechanical Connectors - Lugs | UPC - 07498359618 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LAMA6-14-QY Product Page | Download and View |
| Part Drawings | LAMA Series 300kcmil - 1000kcmil Aluminum Lugs | Download and View |
Panduit LAMA600S-38-6Y | Mechanical Connectors - Lugs | UPC - 07498359618 Environmental Information
| Panduit's RoHS Statement | Download and View |
