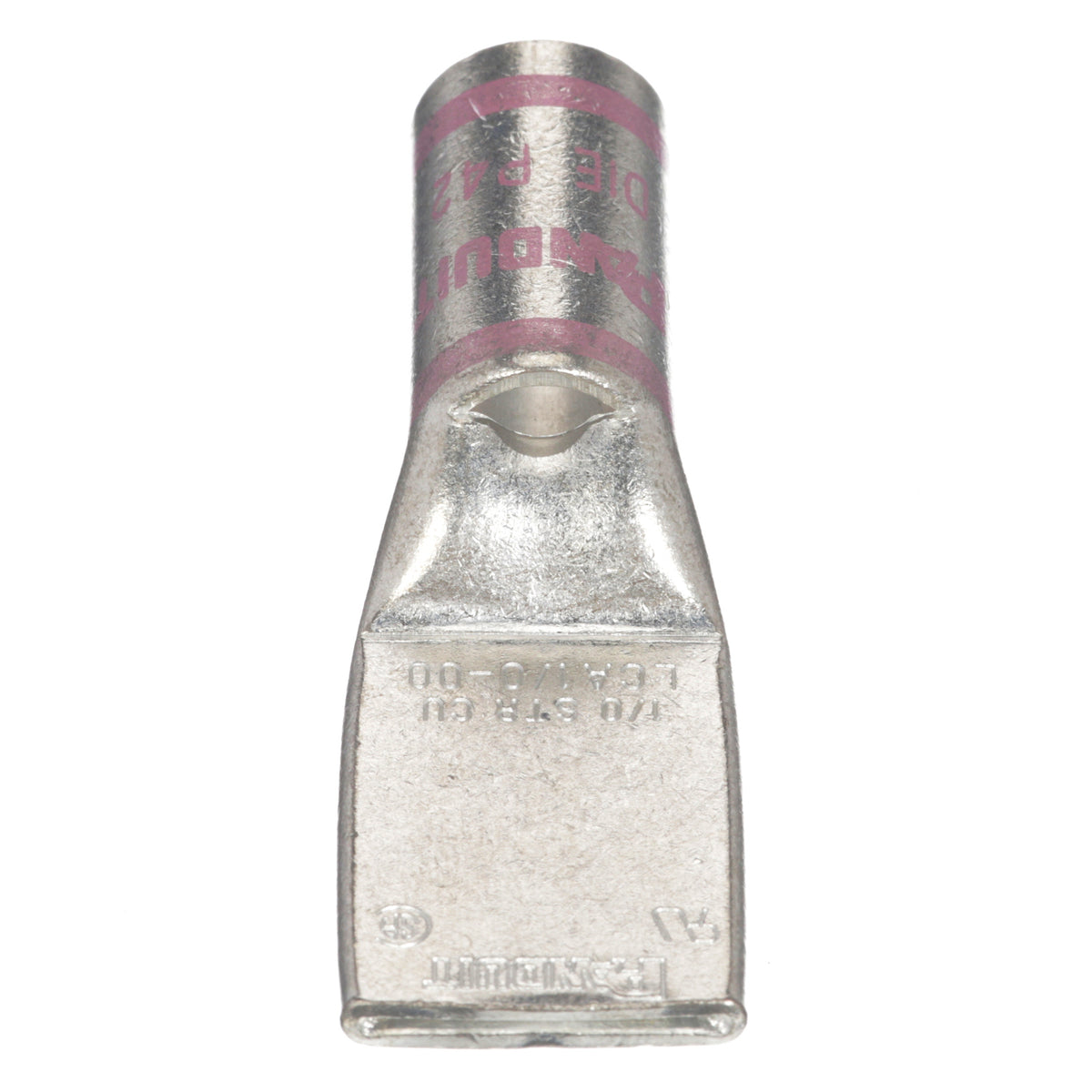

Panduit LCA1/0-00-X | CuLug, Blank, 1/0AWGPKG10
Description
Description
Make strong, reliable electrical connections in applications with our copper blank tongue compression lug, durable quality to withstand harsh environments and provide long-lasting performance.
Blank tongue, standard barrel lug, 1/0 AWG wire.
Panduit Pan-Lug Compression Lug, Series: LCA, Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, Blank Straight Tongue, 1.07 in L x 0.8 in W x 0.12 in THK Tongue, 2.31 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Pink
Panduit - LCA1/0-00-X - Features
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Recognized and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
Specifications
Specifications
Panduit - LCA1/0-00-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA1/0-00-X |
| Barrel | Standard |
| Gauge | 1/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 0 |
| Stud Hole Size (mm) | 0 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 1/0 |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Width (In.) | 0.8 |
| Tongue Width (mm) | 20.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.31 |
| Overall Length (mm) | 58.7 |
| UPC | 07498338228 |
