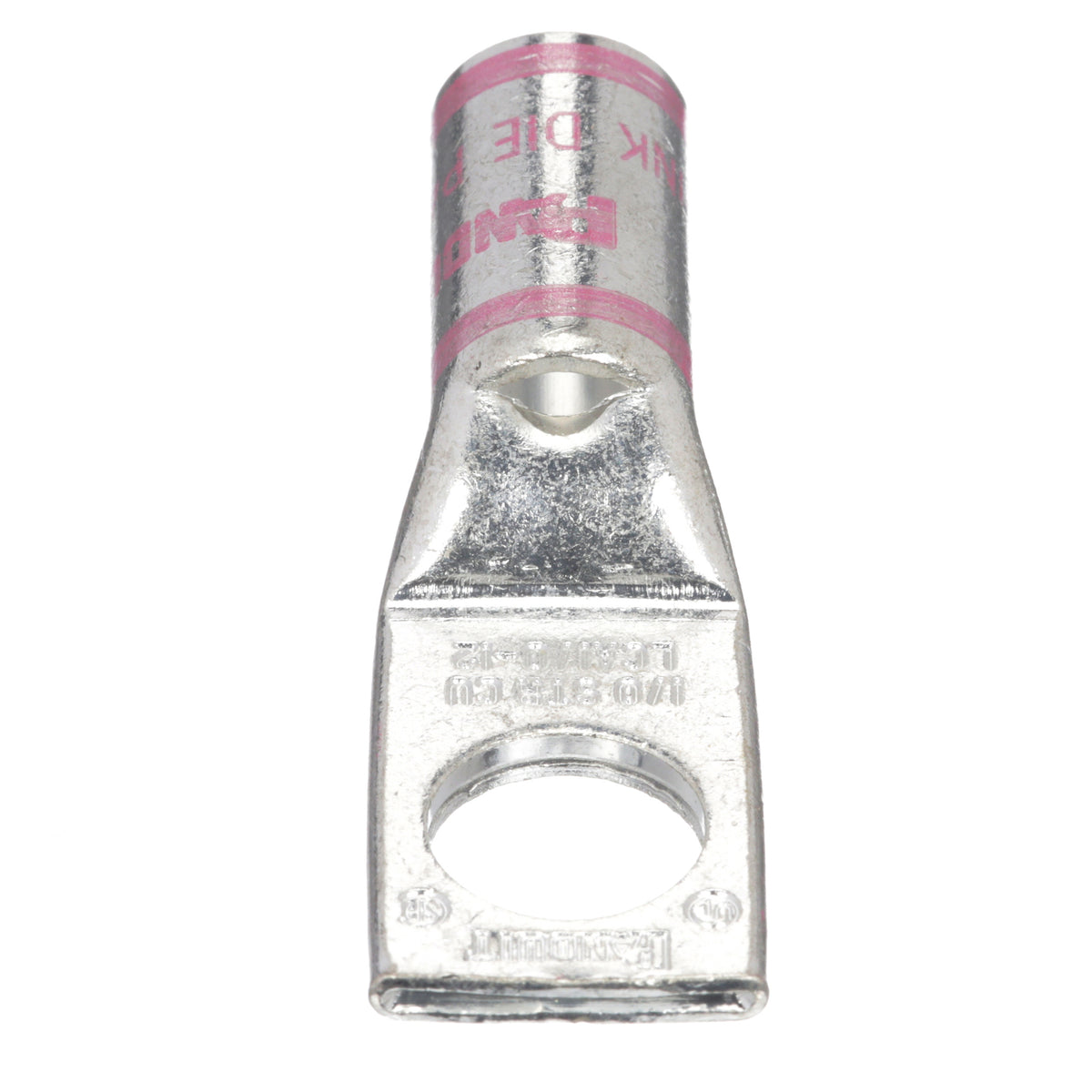

Panduit LCA1/0-12-X | Pan-Lug Comp. Lug, 1/0, Tin Plt Copper, Strt, One 0.5" Stud, PK10
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA1/0-12-X | Pan-Lug Comp. Lug, 1/0, Tin Plt Copper, Strt,...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, 1/0 AWG wire, 1/2 stud hole, standard package.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 1/2 in Stud, Straight Tongue, 0.8 in W x 0.12 in THK Tongue, 2.31 in Overall Length, Standard with Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, Tin Plated, 90 deg C, 1 in Mounting Hole, Copper, Pink
Panduit - LCA1/0-12-X - Features
- Color-coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Specifications
Specifications
Panduit - LCA1/0-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA1/0-12-X |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 1/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 1/0 |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Width (In.) | 0.8 |
| Tongue Width (mm) | 20.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.31 |
| Overall Length (mm) | 58.7 |
| UPC | 07498390027 |
