Panduit LCA1/0-12F-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

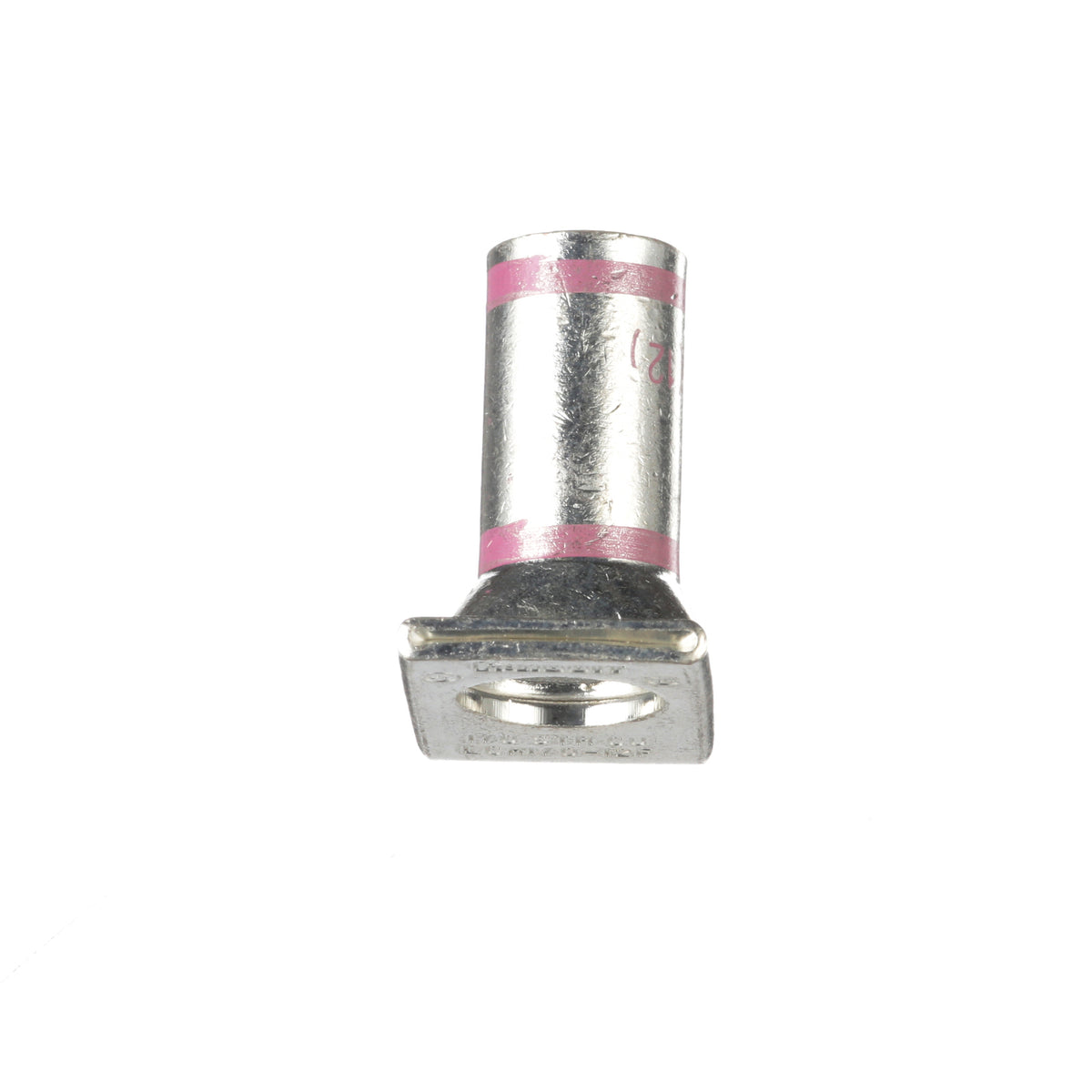

Our 1-hole tongue compression lug, with its 90° angle, simplifies secure connections for large electrical wires in installations and maintenance projects.
One-hole, standard barrel with window lug, 1/0 AWG wire, 90 angle tongue, 1/2" stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 1/2 in Stud, 90 deg Tongue, 0.8 in W x 0.12 in THK Tongue, 1.82 in Overall Length, Standard with Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, Tin Plated Finish, 90 deg C, 1 in Mounting Hole, Copper, Pink
Panduit - LCA1/0-12F-X - Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA1/0-12F-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA1/0-12F-X |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 1/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 90° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 1/0 |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Width (In.) | 0.8 |
| Tongue Width (mm) | 20.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 1.82 |
| Overall Length (mm) | 46.2 |
| UPC | 07498355921 |
Panduit - LCA1/0-12F-X - Videos
| Panduit LCA1/0-12F-X Video 1 | Click to View |
|---|
