Brand: Panduit
|
SKU:
LCA1/0-38F-X
Panduit LCA1/0-38F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356470
Regular price
$84.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA1/0-38F-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$84.86
Unit price
Description
Description

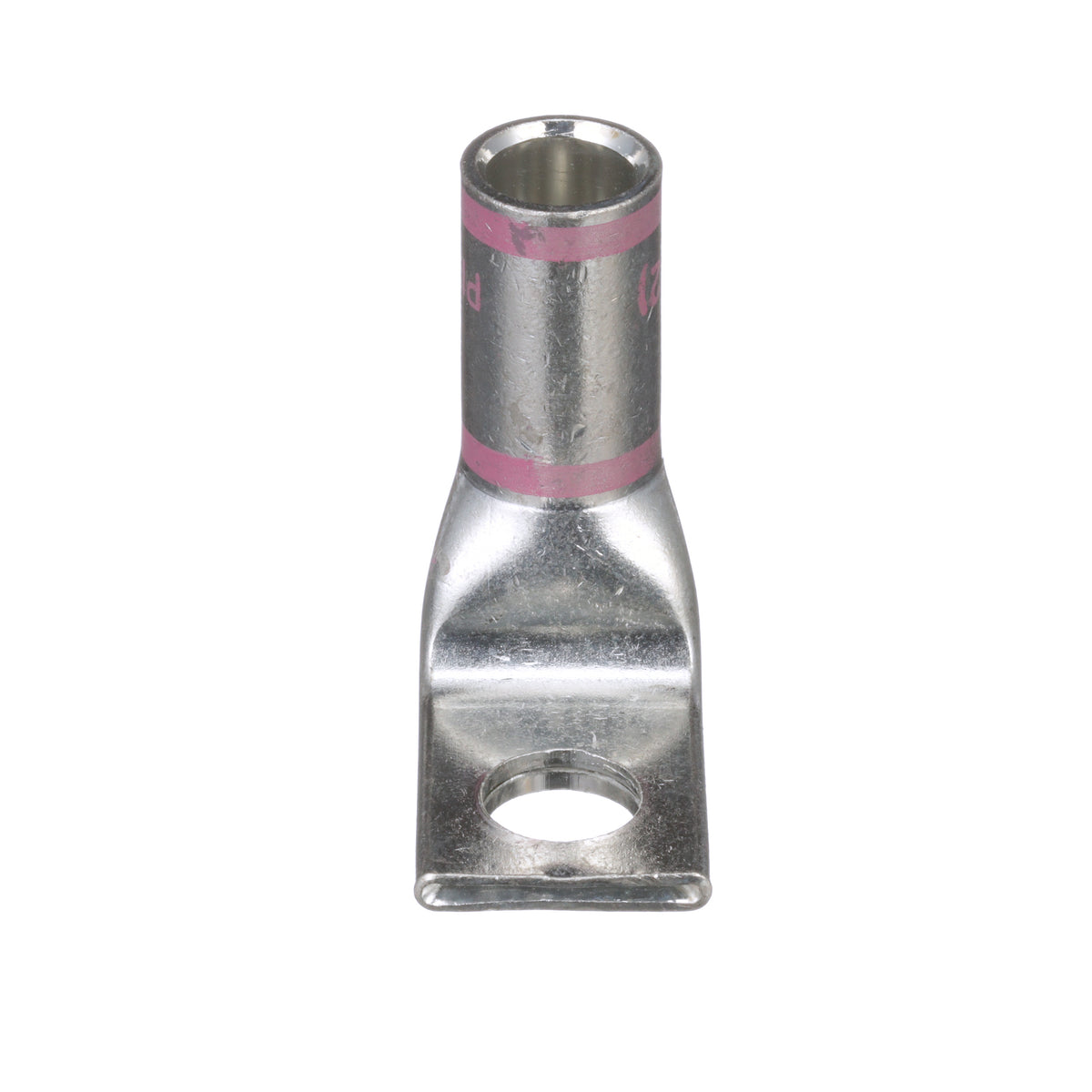

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 3/8 in Stud, 90 deg Tongue, 0.76 in W x 0.12 in THK Tongue, 1.58 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Pink
Features + Benefits
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCA1/0-38F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356470 Key Specs
| Copper Conductor Size (AWG) | 1/0 |
| Copper Conductor Size (kcmil) | 106 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 1.58 |
| Overall Length (mm) | 40.1 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
Panduit LCA1/0-38F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356470 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCA10-14F-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCA1_0-38F-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCA1/0-38F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356470 Environmental Information
| Panduit's RoHS Statement | Download and View |
