Brand: Panduit
|
SKU:
PAN-LCA10-38-L
Panduit LCA10-38-L | Pan-Lug LCA10-38-L Copper Compression Connectors - Lugs
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA10-38-L | Pan-Lug LCA10-38-L Copper Compression Connecto...
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
PAN-LCA10-38-L
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description

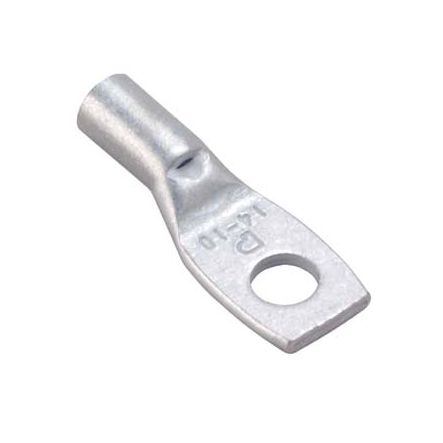

Panduit LCA10-38-L | Pan-Lug LCA10-38-L Copper Compression Connectors - Lugs
One-hole, standard barrel with window lug, #10 AWG wire, 3/8 stud hole.
Panduit LCA10-38-L - LUG - 1H LUG STND BRL
Specifications
Specifications
Panduit - LCA10-38-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCA10-38-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA10-38-L |
| Item Description | Pan-Lug LCA10-38-L Copper Compression Connectors - Lugs |
| Product Type | Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 10 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.56 |
| Tongue Width (mm) | 14.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Overall Length (In.) | 1.38 |
| Overall Length (mm) | 35.1 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Panduit - LCA10-38-L - Package Information
| UPC | 07498397211 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0060 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCA10-38-L - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
