Panduit LCA10-56-L | Pan-Lug LCA10-56-L Copper Compression Connectors - Lugs
Regular price
$28.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA10-56-L | Pan-Lug LCA10-56-L Copper Compression Connecto...
Regular price
$28.04
Unit price
Description
Description

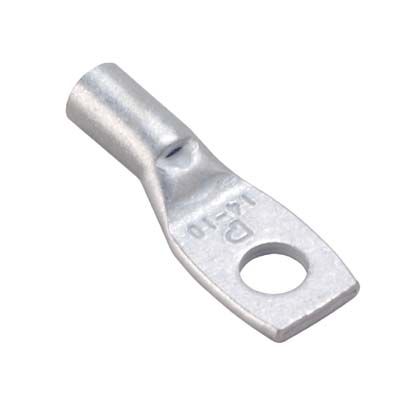

Panduit LCA10-56-L | Pan-Lug LCA10-56-L Copper Compression Connectors - Lugs
One-hole, standard barrel with window lug, #10 AWG wire, 5/16 stud hole.
Specifications
Specifications
Panduit - LCA10-56-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCA10-56-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA10-56-L |
| Item Description | Pan-Lug LCA10-56-L Copper Compression Connectors - Lugs |
| Copper Conductor Size (AWG) | #10 |
| Copper Conductor Size (kcmil) | 10.4 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.54 |
| Tongue Width (mm) | 13.7 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Overall Length (In.) | 1.28 |
| Overall Length (mm) | 32.5 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (mm) | 11.1 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Brand Name - LCA10-56-L - Package Information
| UPC | 07498397210 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0062 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCA10-56-L - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
