Brand: Panduit
|
SKU:
DRC-009408

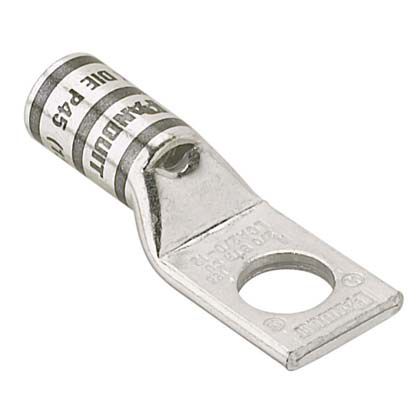

Panduit LCA2/0-12-X | Pan-Lug LCA2/0-12-X Comp. Lug, 2/0, Tin Plt Copper, Strt, One 1/2" Stud, PK10
Regular price
$63.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA2/0-12-X | Pan-Lug LCA2/0-12-X Comp. Lug, 2/0, Tin Plt C...
Regular price
$63.13
Unit price
Description
Description
Panduit LCA2/0-12-X | Pan-Lug LCA2/0-12-X Comp. Lug, 2/0, Tin Plt Copper, Strt, One 1/2" Stud, PK10
The LCA2/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Specifications
Specifications
Panduit - LCA2/0-12-X - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCA2/0-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA2/0-12-X |
| Item Description | Pan-Lug LCA2/0-12-X Comp. Lug, 2/0, Tin Plt Copper, Strt, One 1/2" Stud, PK10 |
| Inside Diameter (In.) | 0.45 |
| Inside Diameter (mm) | 11.43 |
| Outer Diameter (In.) | 0.58 |
| Outer Diameter (mm) | 14.73 |
| Product Type | Compression Lug |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 2/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.39 |
| Overall Length (mm) | 60.7 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
| T & B Die Index Number | 45 |
| Wire Strip Length (In.) | 1-1/16 |
| Wire Strip Length (mm) | 27 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Brand Name - LCA2/0-12-X - Package Information
| UPC | 07498390031 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0184 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCA2/0-12-X - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
| Video URL 3 | Click to View |
