Panduit LCA2/0-14-X | Pan-Lug Comp. Lug, 2/0, Tin Plt Copper, Strt,...
Description
Description

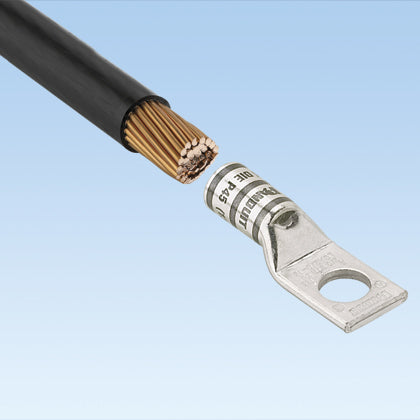

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, 2/0 AWG wire, 1/4 stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.09 in Overall Length, Standard/Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, Specifications: Tin Plated Finish, 90 deg C, Copper, Black
Panduit - LCA2/0-14-X - Features
- Straight tongue angle
- 1-1/16 in L wire strip
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
Specifications
Panduit - LCA2/0-14-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA2/0-14-X |
| Barrel | Standard |
| Bolt Hole | 1/4 Inch |
| Gauge | 2/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.09 |
| Overall Length (mm) | 53.1 |
| UPC | 07498390115 |
