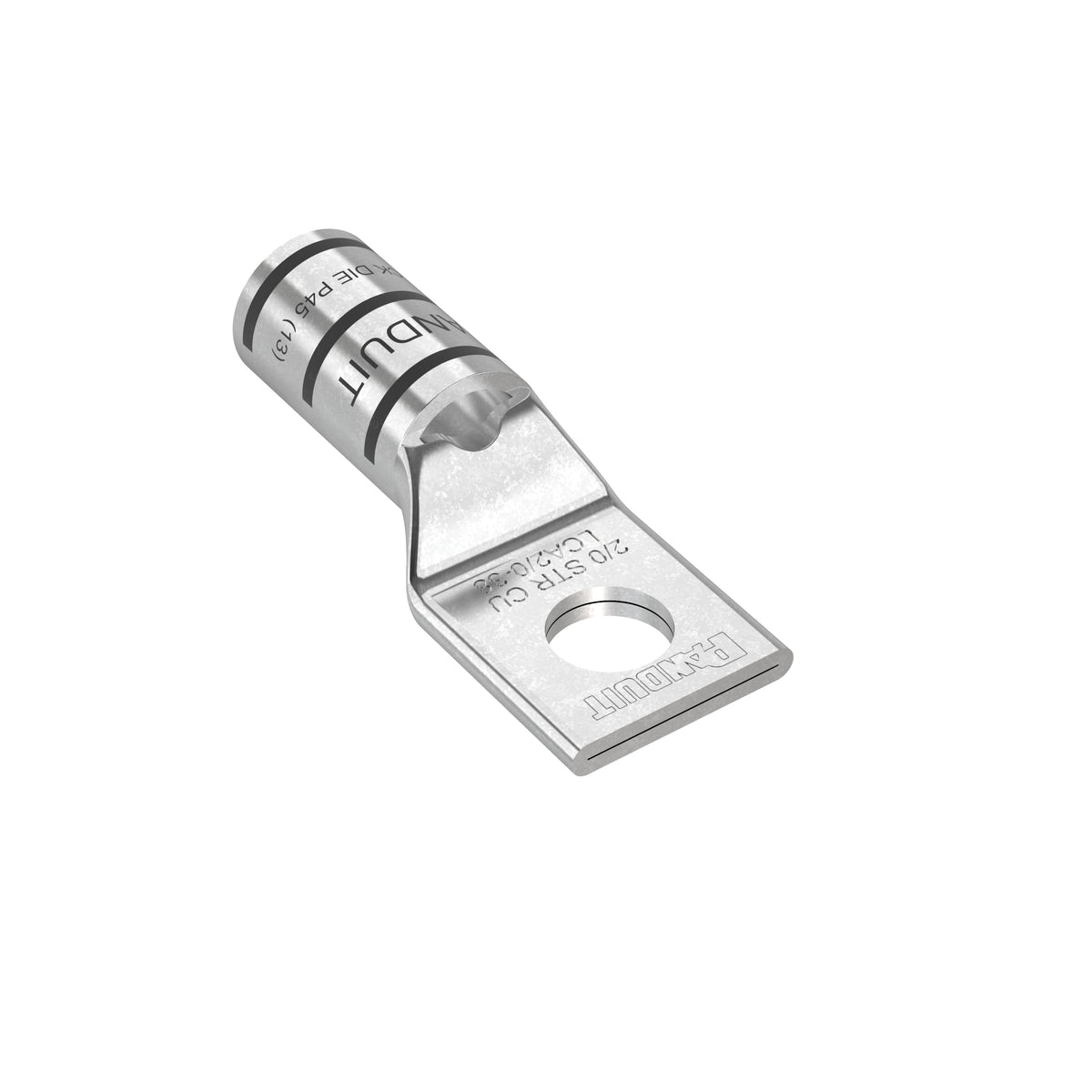

Panduit LCA2/0-38-X | Pan-Lug Comp. Lug, 2/0, Tin Plt Copper, Strt, One 3/8" Stud, PK10
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA2/0-38-X | Pan-Lug Comp. Lug, 2/0, Tin Plt Copper, Strt,...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
The LCA2/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full condu ctor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C
Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.15 in Overall Length, Standard/Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, 1-1/16 in L Wire Strip, Tin Plated, 90 deg C, 1-1/16 in Mounting Hole, Copper, Black
Panduit - LCA2/0-38-X - Features
- Straight tongue angle
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Specifications
Specifications
Panduit - LCA2/0-38-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA2/0-38-X |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 2/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.15 |
| Overall Length (mm) | 54.6 |
| UPC | 07498390030 |
