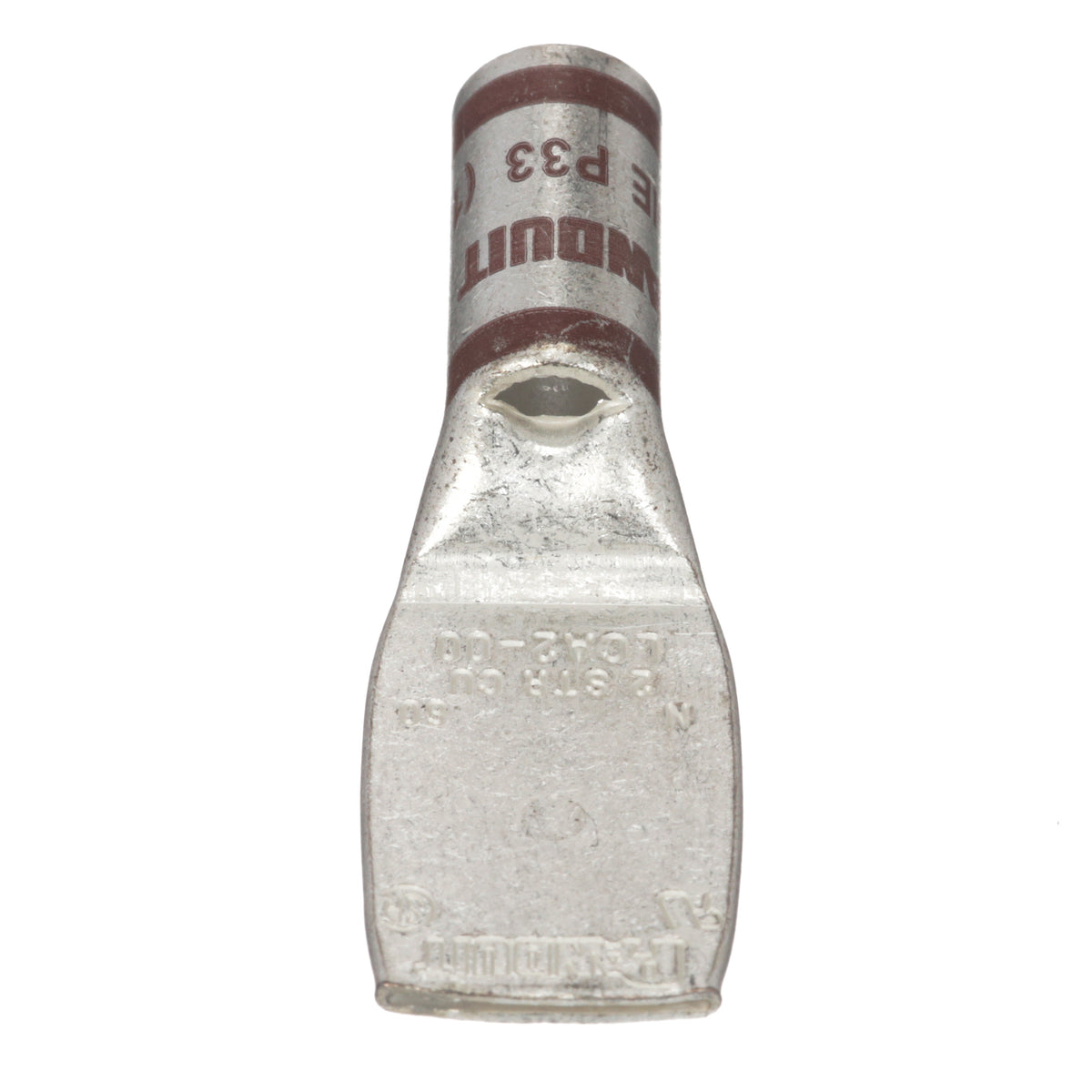

Panduit LCA2-00-Q | CuLug, Blank, #2AWGPKG25
Description
Description
Make strong, reliable electrical connections in applications with our copper blank tongue compression lug, durable quality to withstand harsh environments and provide long-lasting performance.
Panduit Pan-Lug Compression Lug, Series: LCA, Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, Blank Straight Tongue, 1.07 in L x 0.75 in W x 0.08 in THK Tongue, 2.21 in Overall Length, Standard With Inspection Window Barrel, 0.31 in ID x 0.42 in OD x 0.88 in L Barrel, 15/16 in L Wire Strip, 90 deg C, 15/16 in Mounting Hole, Tin Plated Copper, Brown
Panduit - LCA2-00-Q - Features
- Color-coded bands for proper die selection and crimp placement
- Inspection window to assure complete conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Specifications
Specifications
Panduit - LCA2-00-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA2-00-Q |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 0 |
| Stud Hole Size (mm) | 0 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.21 |
| Overall Length (mm) | 56.1 |
| UPC | 07498338224 |
