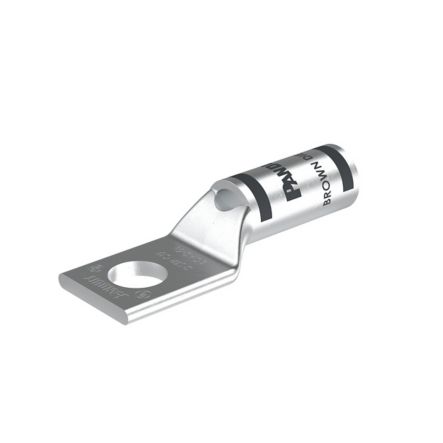

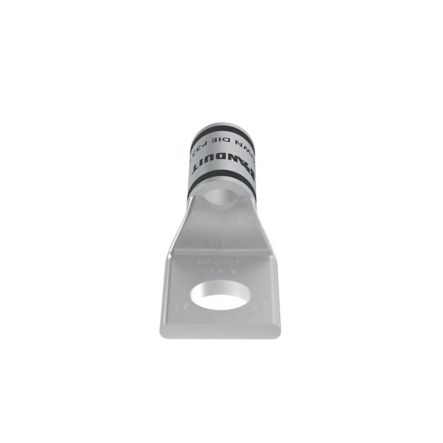

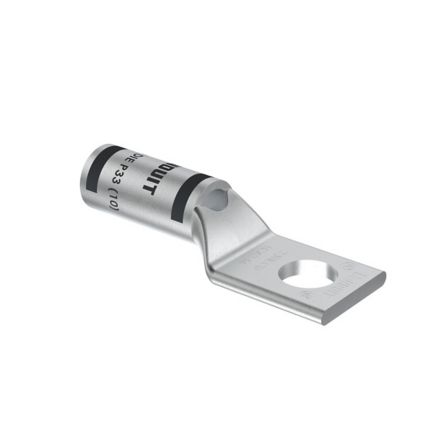

The LCA2-56-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
One-hole, standard barrel with window lug, #2 AWG wire, 5/16" stud hole.
Panduit - LCA2-56-Q - Features
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA2-56-Q - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCA2-56-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA2-56-Q |
| Item Description | Pan-Lug LCA2-56-Q Comp. Lug, 2, Tin Plt Copper, Strt, One 0.31" Stud, PK25 |
| Inside Diameter (In.) | 0.31 |
| Inside Diameter (mm) | 7.87 |
| Outer Diameter (In.) | 0.42 |
| Outer Diameter (mm) | 10.6 |
| Product Type | Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 2 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 1.9 |
| Overall Length (mm) | 48.3 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Burndy Die Index Number | 10 |
| T & B Die Index Number | 10 |
| Wire Strip Length (In.) | 15/16 |
| Wire Strip Length (mm) | 23.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Panduit - LCA2-56-Q - Package Information
| UPC | 07498390016 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0184 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
