Panduit LCA3/0-12H-X | STDLug, 3/0AWG, .5in, 45°, WDW, PK10
Description
Description

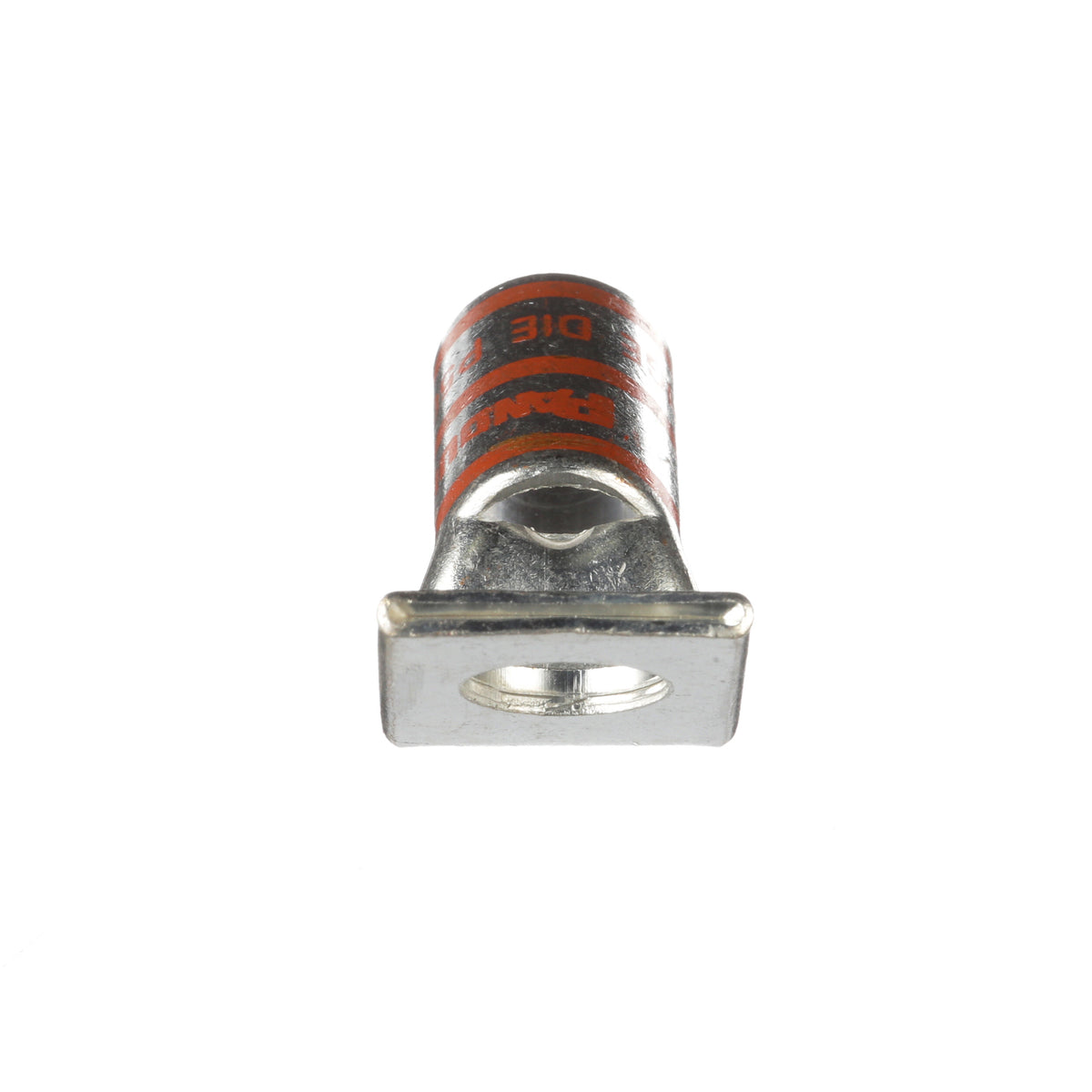

Connect large wires securely with our copper 1-hole tongue compression lug, its 45° angle offers increased flexibility and reliability in electrical applications.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kVAC, 1/2 in Stud, 45 deg Tongue, 0.96 in W x 0.13 in THK Tongue, 2.21 in Overall Length, Standard/Inspection Window Barrel, 0.51 in ID x 0.64 in OD x 1.14 in L Barrel, Specifications: 1-3/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 1.19 in Mounting Hole, Copper, Orange
Panduit - LCA3/0-12H-X - Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
Specifications
Panduit - LCA3/0-12H-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA3/0-12H-X |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 3/0 |
| Barrel Length (In.) | 1.14 |
| Barrel Length (mm) | 29 |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.21 |
| Overall Length (mm) | 56.1 |
| UPC | 07498355859 |
