Brand: Panduit
|
SKU:
PAN-LCA3/0-14

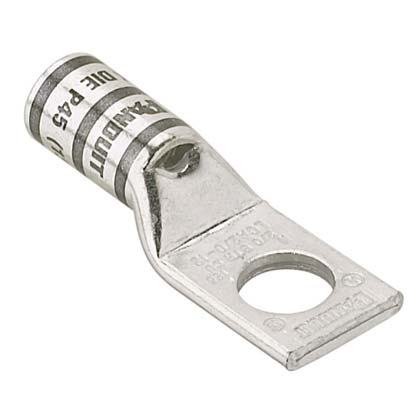

Panduit LCA3/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390117
Regular price
$10.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA3/0-14-X | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$10.69
Unit price
Brand: Panduit
|
SKU:
PAN-LCA3/0-14
Regular price
$10.69
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Compression Connectors Lug, 1-Hole, 3/0 AWG Conductor, Die Code: P50, 35 kV, 42.826 in Stud, Standard Tongue, 0.96 in W x 0.13 in THK Tongue, 2.28 in Overall Length, Standard Barrel Length with Inspection Window Barrel, 1.14 in L Barrel, Specifications: Straight Tongue, 90 deg C, 1.19 in Mounting Hole, Tin-Plated Copper, Orange
Features + Benefits
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
Panduit LCA3/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390117 Key Specs
| Copper Conductor Size (AWG) | 3/0 |
| Copper Conductor Size (kcmil) | 168 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.14 |
| Barrel Length (mm) | 29 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.28 |
| Overall Length (mm) | 57.9 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
Panduit LCA3/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390117 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCA10-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCA3_0-14-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCA3/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390117 Environmental Information
| Panduit's RoHS Statement | Download and View |
