Panduit LCA300-12-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

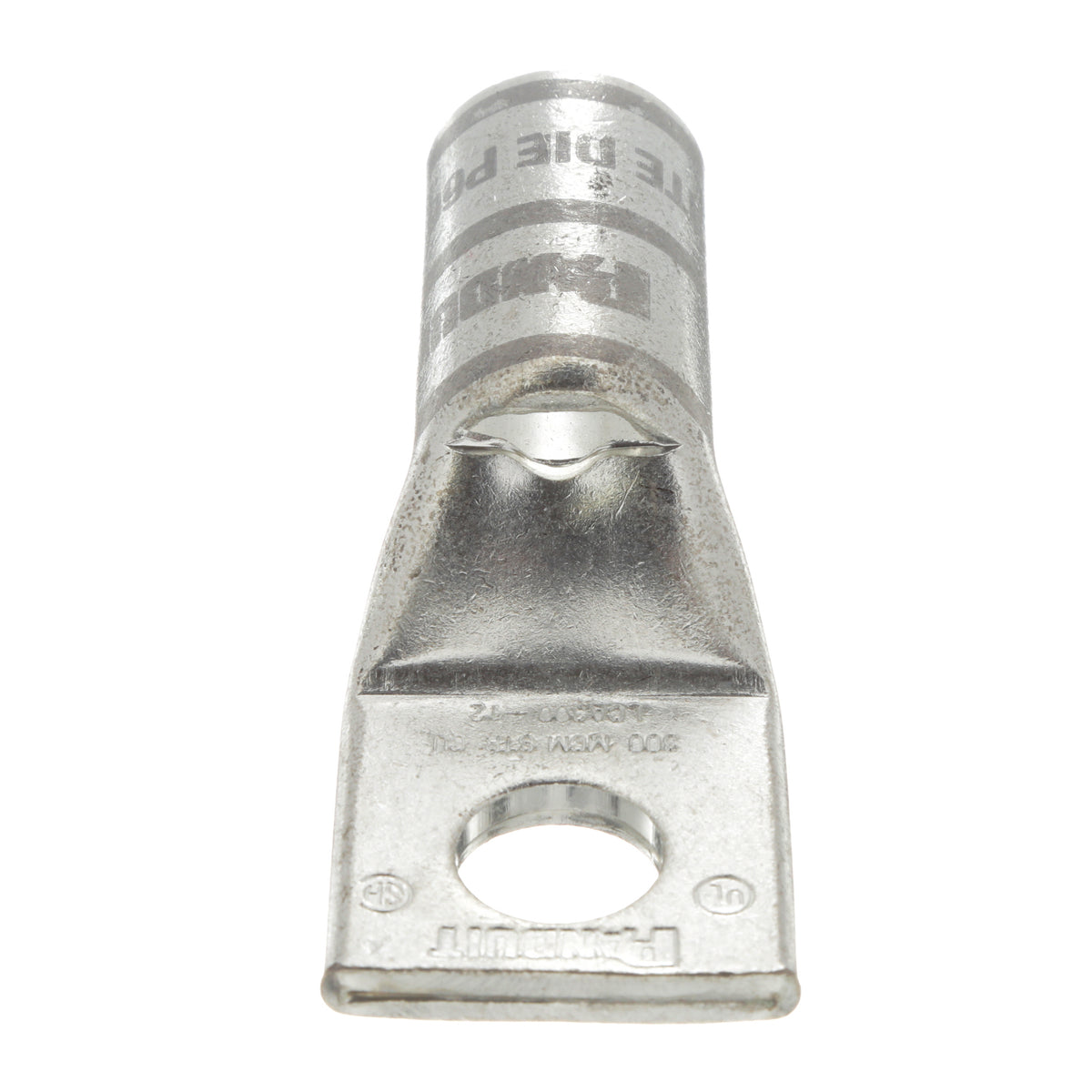

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, 300 kcmil cable, 1/2" stud hole.
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 300 kcmil Conductor, Die Code: P66, 35 kV, 1/2 in Stud, Standard Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 3.05 in Overall Length, Standard Barrel, 1.44 in Barrel, 90 deg C, 0.53 in Mounting Hole, TiN Coated Copper, White
Panduit - LCA300-12-X - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-coated to inhibit corrosion
- UL Listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit Uni-Die dieless crimping tools
- Tested by telcordia - meets NEBS level 3
- American bureau of shipping approved
- Standard barrel length with inspection window
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA300-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA300-12-X |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 300Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (kcmil) | 300 |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 3.05 |
| Overall Length (mm) | 77.5 |
| UPC | 07498390050 |
