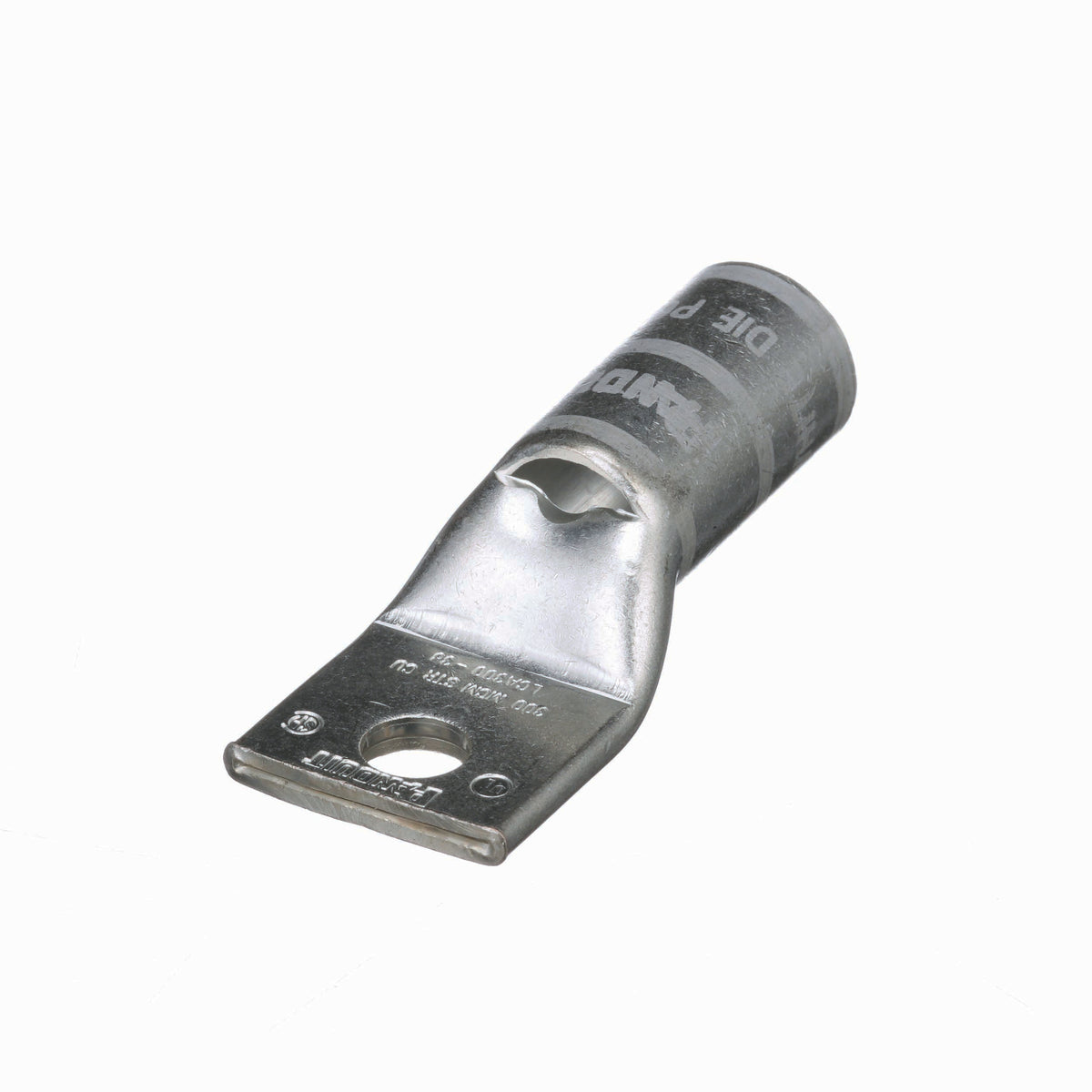

Panduit LCA300-38-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, 300 kcmil cable, 3/8 stud hole, standard package.
Panduit Compression Connectors Lug, 1-Hole, Copper Conductor, 300 kcmil Conductor, Die Code: P66, 35 kV, 3/8 in Stud, Standard Tongue, 1.19 in W x 0.16 in THK Tongue, 2.94 in Overall Length, Standard Barrel Length with Inspection Window Barrel, 1.44 in L Barrel, Specifications: Straight Tongue, 90 deg C, 1-1/2 in Mounting Hole, White
Panduit - LCA300-38-X - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin coated to inhibit corrosion
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA300-38-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA300-38-X |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 300Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (kcmil) | 300 |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 2.94 |
| Overall Length (mm) | 74.7 |
| UPC | 07498390196 |
Panduit - LCA300-38-X - Videos
| Panduit LCA300-38-X Video 1 | Click to View |
|---|
