Brand: Panduit
|
SKU:
PAN-LCA300-58

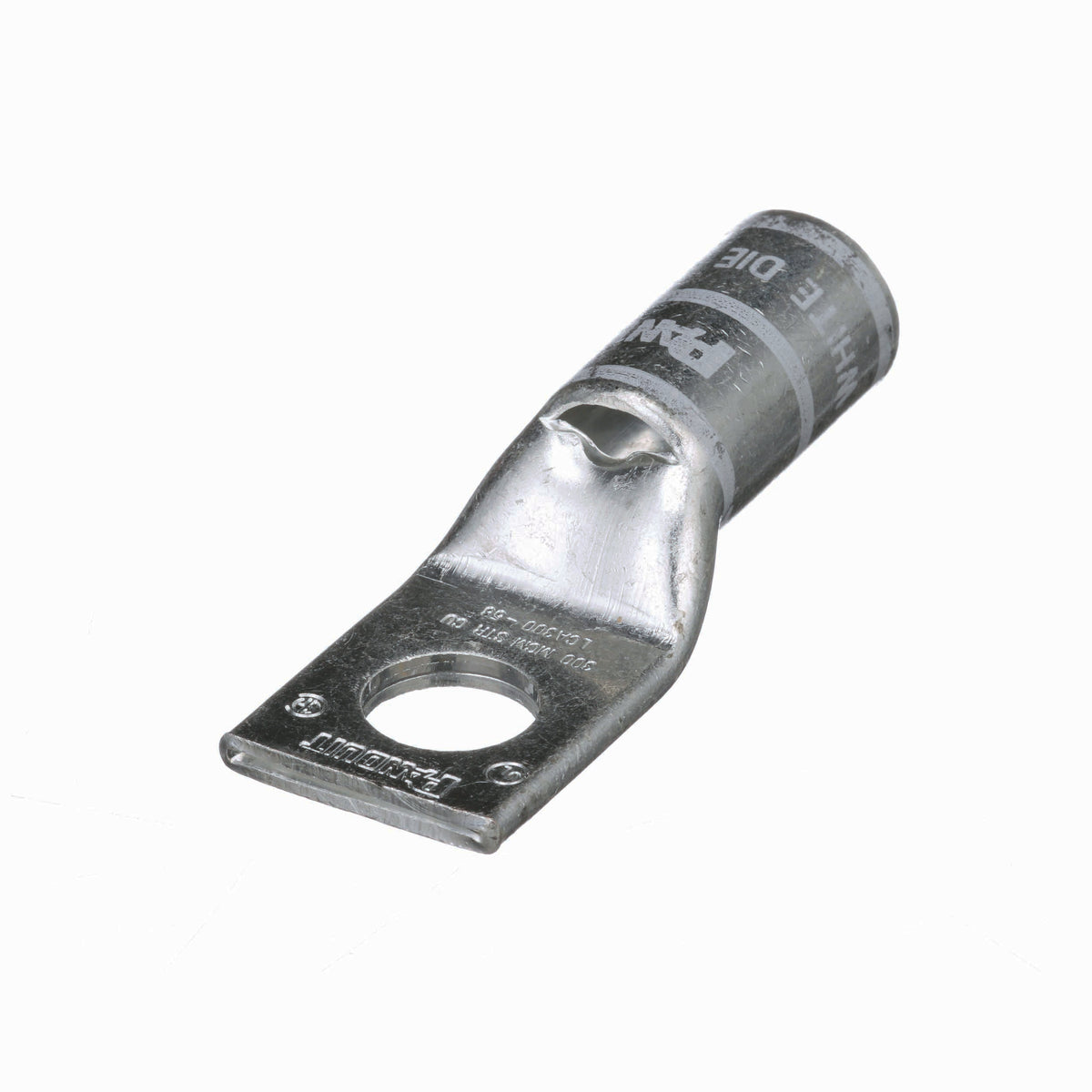

Panduit LCA300-58-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390197
Regular price
$13.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA300-58-X | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$13.32
Unit price
Brand: Panduit
|
SKU:
PAN-LCA300-58
Regular price
$13.32
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 300 kcmil Conductor, Die Code: P66, 35 kV, 5/8 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 3.26 in Overall Length, Standard/Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.44 in L Barrel, 1-1/2 in L Wire Strip, Tin Plated, 90 deg C, 1-1/2 in Mounting Hole, Copper, White
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCA300-58-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390197 Key Specs
| Inside Diameter (In.) | 0.65 |
| Inside Diameter (mm) | 16.51 |
| Outer Diameter (In.) | 0.81 |
| Outer Diameter (mm) | 20.57 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (kcmil) | 300 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 5/8 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
Panduit LCA300-58-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390197 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCA10-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCA300-58-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCA300-58-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390197 Environmental Information
| Panduit's RoHS Statement | Download and View |
