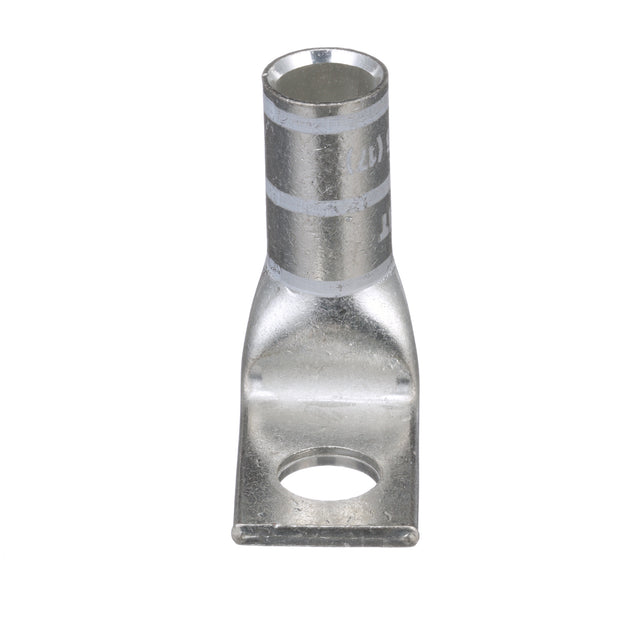

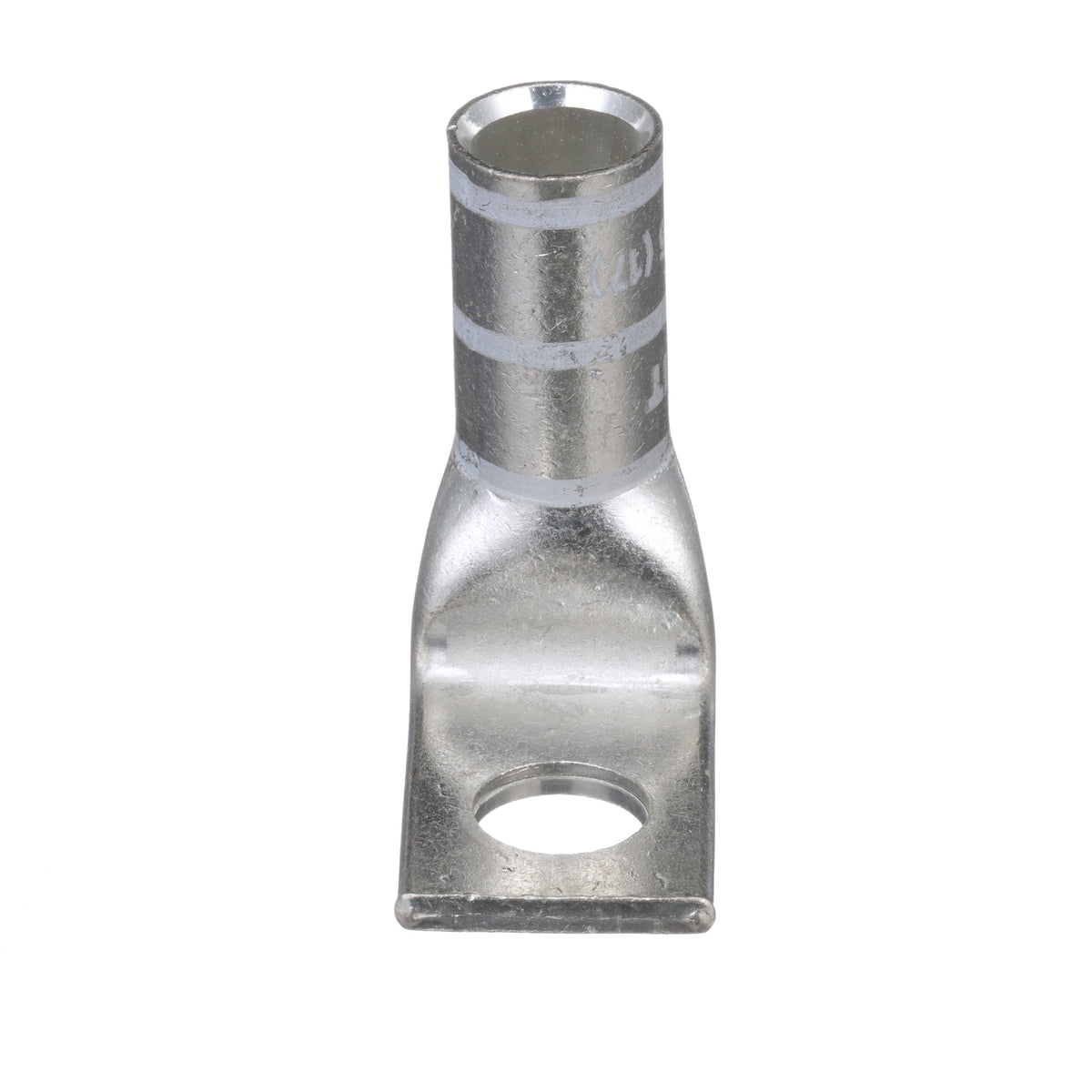

Panduit LCA300-58F-X | CuLug, 300kcmil, 5/8Stud, 90°PKG10
Description
Description
Our 1-hole tongue compression lug, with its 90° angle, simplifies secure connections for large electrical wires in installations and maintenance projects.
Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCA, Copper/Stranded Conductor, 300 kcmil Conductor, Die Code: P66, 35 kVAC, 5/8 in Stud, 90 deg Tongue, 1.19 in W x 0.16 in THK Tongue, 1.35 in Overall Length, Standard with Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.44 in L Barrel, Specifications: 1-1/2 in L Wire Strip, 90 deg C, 1-1/2 in Mounting Hole, Copper, White
Panduit - LCA300-58F-X - Features
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
Specifications
Panduit - LCA300-58F-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA300-58F-X |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 90° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/8 |
| Stud Hole Size (mm) | 15.9 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (kcmil) | 300 |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 2.39 |
| Overall Length (mm) | 60.7 |
| UPC | 07498386963 |
