Panduit LCA4/0-12H-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Connect large wires securely with our copper 1-hole tongue compression lug, its 45° angle offers increased flexibility and reliability in electrical applications.
One-hole, standard barrel with window lug, 4/0 AWG wire, 45 angle tongue, 1/2" stud hole.

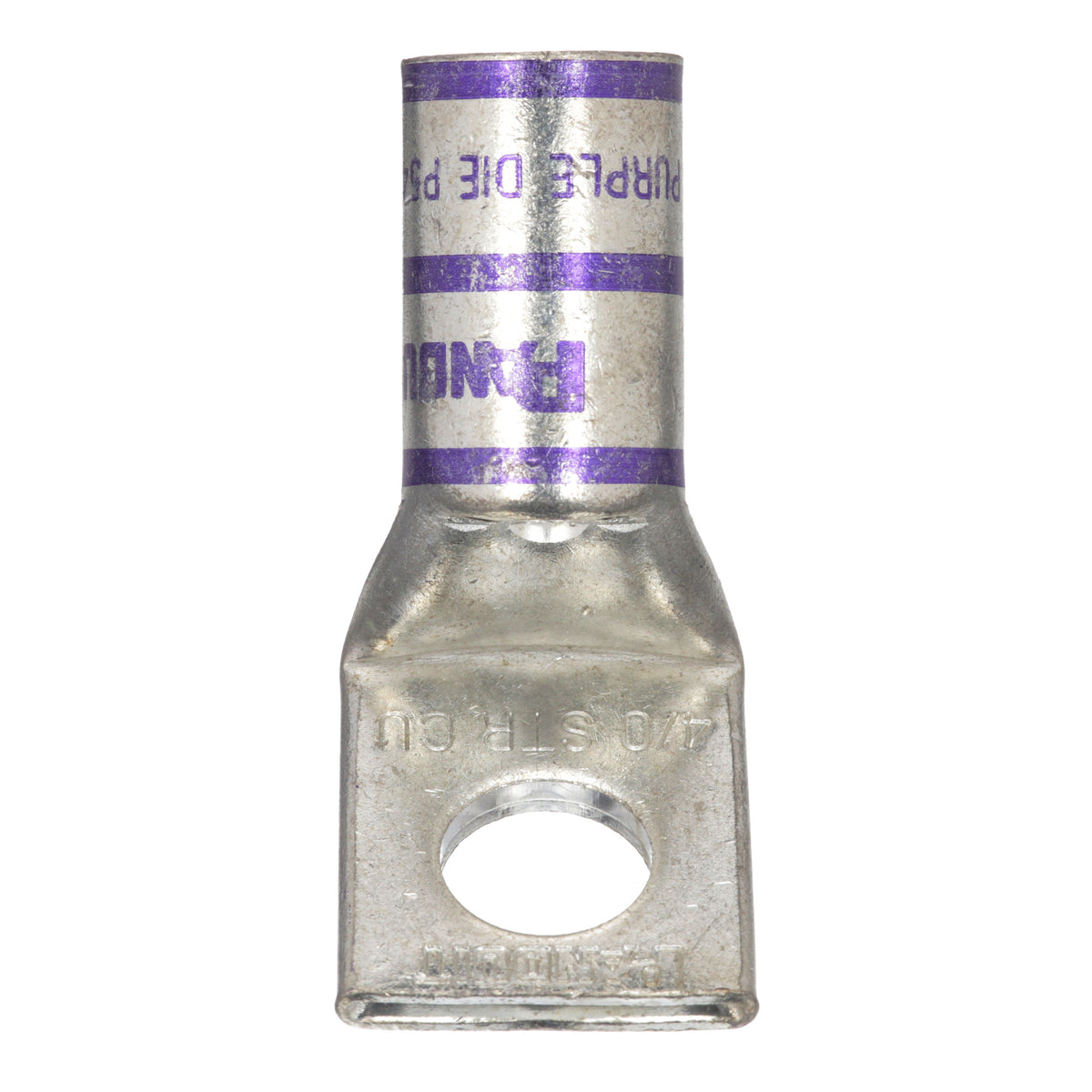

Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, 45 deg Tongue, 1.06 in W x 0.14 in THK Tongue, 2.28 in Overall Length, Standard/Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 1.19 in L Barrel, 1-1/4 in L Wire Strip, Tin Plated, 90 deg C, 1-1/4 in Mounting Hole, Copper, Purple
Panduit - LCA4/0-12H-X - Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA4/0-12H-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA4/0-12H-X |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 4/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 4/0 |
| Barrel Length (In.) | 1.19 |
| Barrel Length (mm) | 30.2 |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.28 |
| Overall Length (mm) | 57.9 |
| UPC | 07498355864 |
