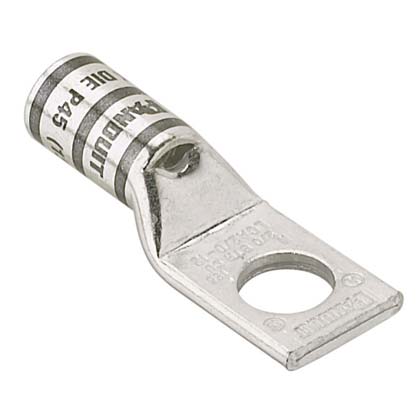

Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 5/16 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 2.38 in Overall Length, Standard/Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 1.19 in L Barrel, 1-1/4 in L Wire Strip, Tin Plated, 90 deg C, 1-1/4 in Mounting Hole, Copper, Purple
Features + Benefits
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCA4/0-56-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498390120 Key Specs
| Copper Conductor Size (AWG) | 4/0 |
| Copper Conductor Size (kcmil) | 212 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.19 |
| Barrel Length (mm) | 30.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.38 |
| Overall Length (mm) | 60.5 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
