Panduit LCA4-10-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

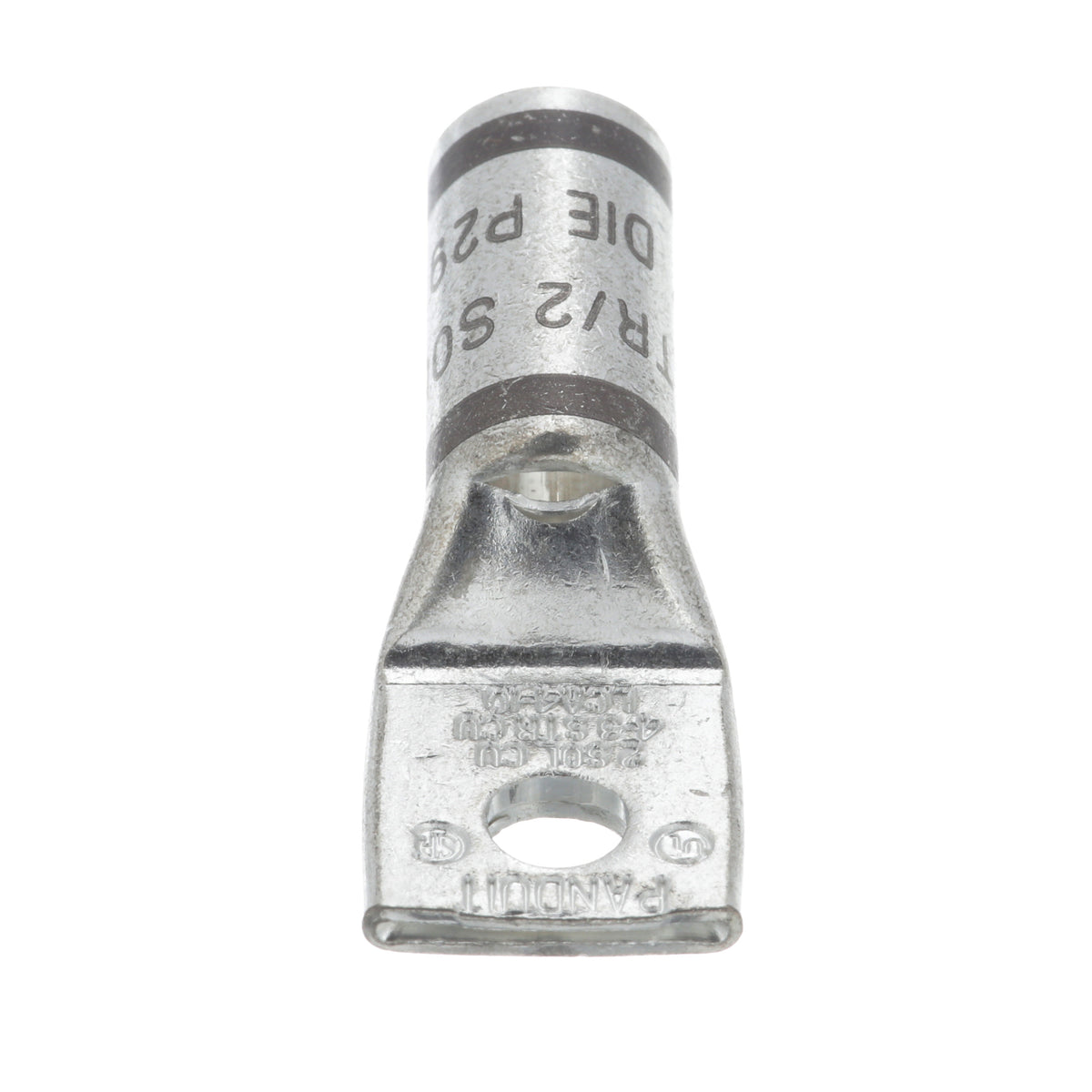

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, #4 " #3 AWG STR, #2 AWG SOL wire, #10 stud hole.
Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCA, Copper/Solid Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 0.19 in Stud, Standard Tongue, 0.55 in W x 0.09 in THK Tongue, 1.54 in Overall Length, Standard/Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 0.81 in L Barrel, Specifications: 7/8 in L Wire Strip, 90 deg C, Copper, Gray
Panduit - LCA4-10-L - Features
- Straight tongue angle
- 7/8 in L wire strip
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- 4 to 3 AWG stranded, 2 AWG solid wire
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA4-10-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA4-10-L |
| Barrel | Standard |
| Bolt Hole | 10Mm |
| Gauge | 4 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 4 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.54 |
| Overall Length (mm) | 39.1 |
| UPC | 07498390010 |
Panduit - LCA4-10-L - Videos
| Panduit LCA4-10-L Video 1 | Click to View |
|---|
