Panduit LCA4-12-L | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, One 0....
Description
Description

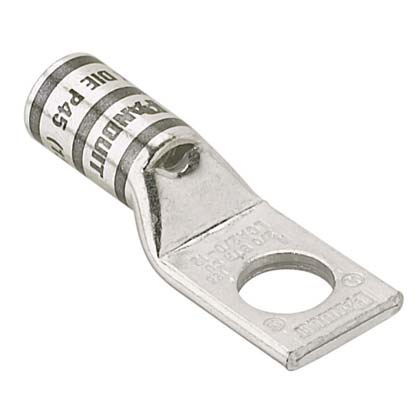

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, #4 AWG wire, 1/2 stud hole.
Panduit Compression Connectors Lug, 1-Hole, Copper Conductor, #4 to #3 AWG STR/#2 AWG SOL AWG Conductor, Die Code: P29, 35 kV, 1/2 in Stud, Standard Tongue, 0.75 in W x 0.07 in THK Tongue, 2.23 in Overall Length, Standard Barrel Length with Inspection Window Barrel, 0.81 in L Barrel, Specifications: Straight Tongue, 90 deg C, 42954 in Mounting Hole, Gray
Panduit - LCA4-12-L - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin coated to inhibit corrosion
Specifications
Specifications
Panduit - LCA4-12-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA4-12-L |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 4 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 4 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 2.23 |
| Overall Length (mm) | 56.6 |
| UPC | 07498344821 |
