Panduit LCA4-56H-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

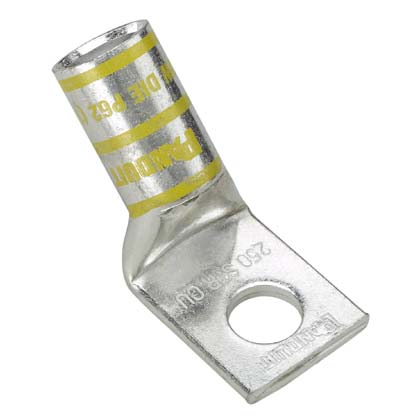

Connect large wires securely with our copper 1-hole tongue compression lug, its 45° angle offers increased flexibility and reliability in electrical applications.
One-hole, standard barrel with window lug, #4 " #3 AWG STR, #2 AWG SOL wire, 45 angle tongue, 5/16 stud hole.
Panduit Compression Lug, 1-Hole, Series: LCA, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 5/16 in Stud, 45 deg Tongue, 0.55 in W x 0.09 in THK Tongue, 1.52 in Overall Length, Standard/Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 42.954 in Mounting Hole, Copper, Gray
Panduit - LCA4-56H-L - Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
Specifications
Panduit - LCA4-56H-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA4-56H-L |
| Barrel | Short |
| Bolt Hole | 5/16 Inch |
| Gauge | 4 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 4 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.52 |
| Overall Length (mm) | 38.6 |
| UPC | 07498355824 |
