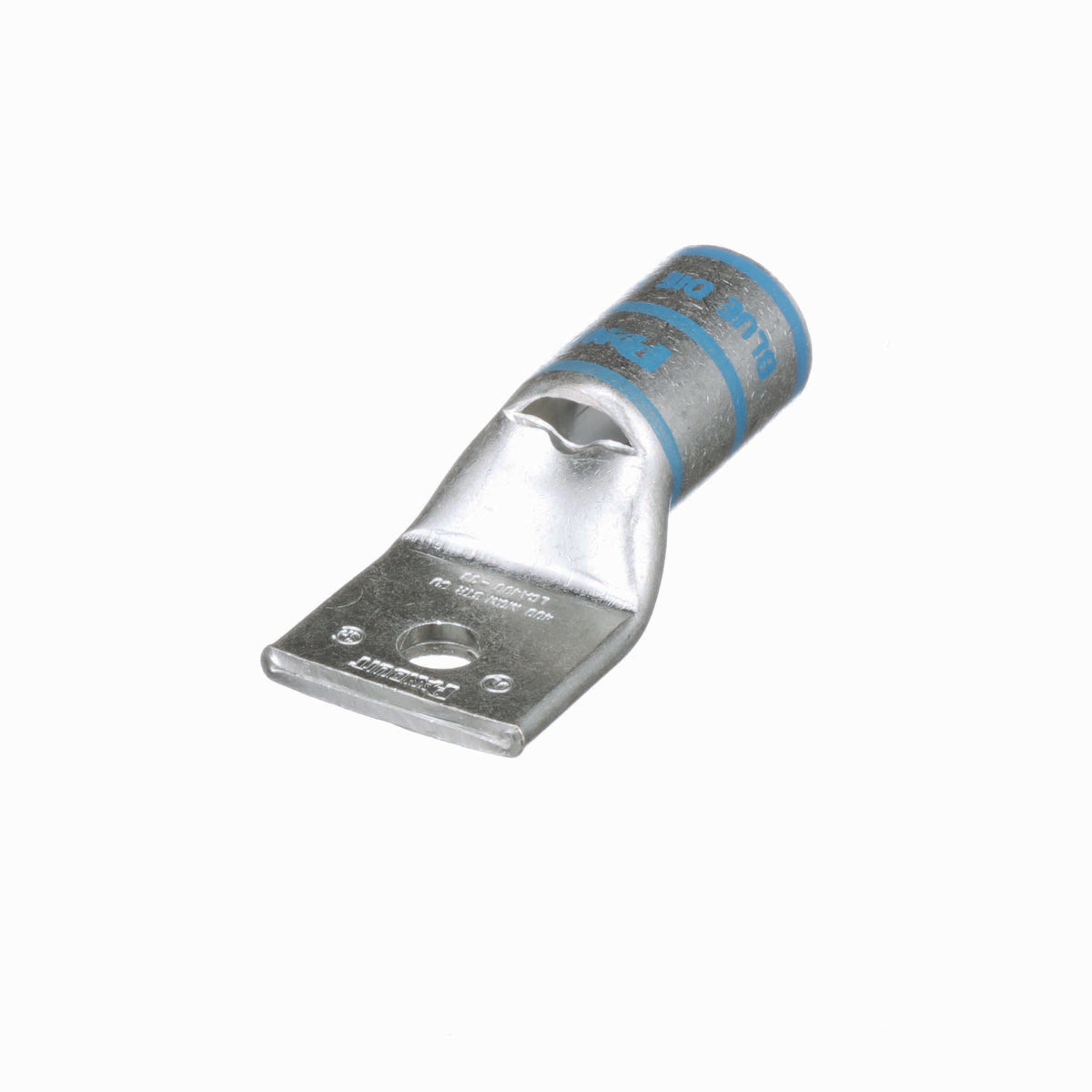

Panduit LCA400-38-6 | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, 400 kcmil cable, 3/8 stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 400 kcmil Conductor, Die Code: P76, 35 kVAC, 3/8 in Stud, Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 3.22 in Overall Length, Standard with Inspection Window Barrel, 0.76 in ID x 0.95 in OD x 1.5 in L Barrel, 1-9/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 1.56 in Mounting Hole, Copper, Blue
Panduit - LCA400-38-6 - Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
Specifications
Panduit - LCA400-38-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA400-38-6 |
| Bolt Hole | 3/8 Inch |
| Gauge | 400Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (kcmil) | 400 |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Width (In.) | 1.39 |
| Tongue Width (mm) | 35.3 |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (In.) | 3.22 |
| Overall Length (mm) | 81.8 |
| UPC | 07498371941 |
