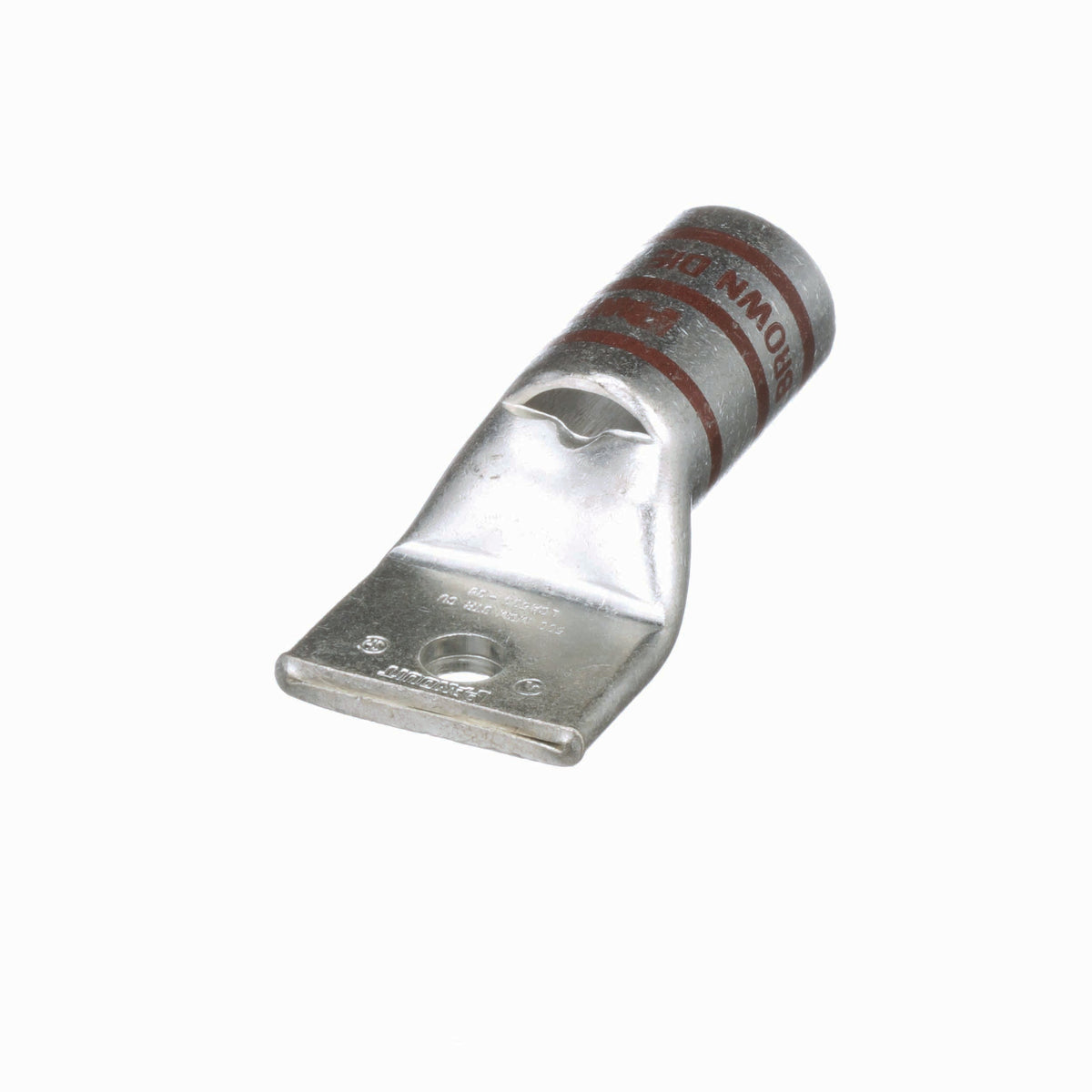

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 500 kcmil Conductor, Die Code: P87, 35 kVAC, 3/8 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 3.39 in Overall Length, Standard With Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 1.75 in L Barrel, 1-13/16 in L Wire Strip, 90 deg C, 1.81 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCA500-38-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498371944 Key Specs
| Copper Conductor Size (kcmil) | 500 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 3.39 |
| Overall Length (mm) | 86.1 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
