Panduit LCA6-10H-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Connect large wires securely with our copper 1-hole tongue compression lug, its 45° angle offers increased flexibility and reliability in electrical applications.
One-hole, standard barrel with window lug, #6 AWG wire, 45 angle tongue, #10 stud hole.

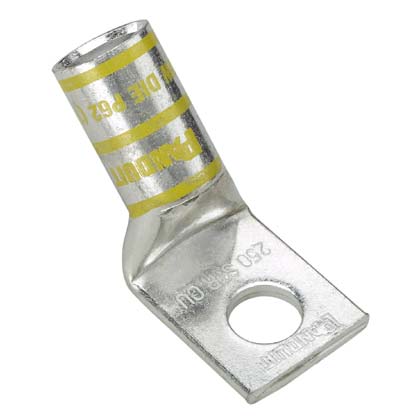

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, #10 Stud, 45 deg Tongue, 0.45 in W x 0.09 in THK Tongue, 1.29 in Overall Length, Standard With Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 7/8 in Mounting Hole, Copper, Blue
Panduit - LCA6-10H-L - Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible copper conductors
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA6-10H-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA6-10H-L |
| Barrel | Standard |
| Bolt Hole | 10Mm |
| Gauge | 6 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 6 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.45 |
| Tongue Width (mm) | 11.4 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.29 |
| Overall Length (mm) | 32.8 |
| UPC | 07498355805 |
