LCA6-14F-L
Panduit LCA6-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355902
Regular price
$4.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA6-14F-L | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$4.44
Unit price
Description
Description

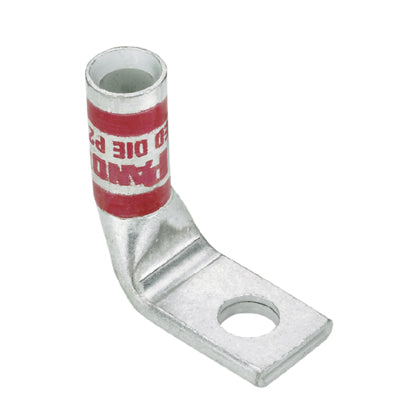

Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.48 in W x 0.08 in THK Tongue, 1.03 in Overall Length, Standard/Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 42.954 in Mounting Hole, Copper, Blue
Features + Benefits
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit LCA6-14F-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355902 Key Specs
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 11.4 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.03 |
| Overall Length (mm) | 26.2 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
