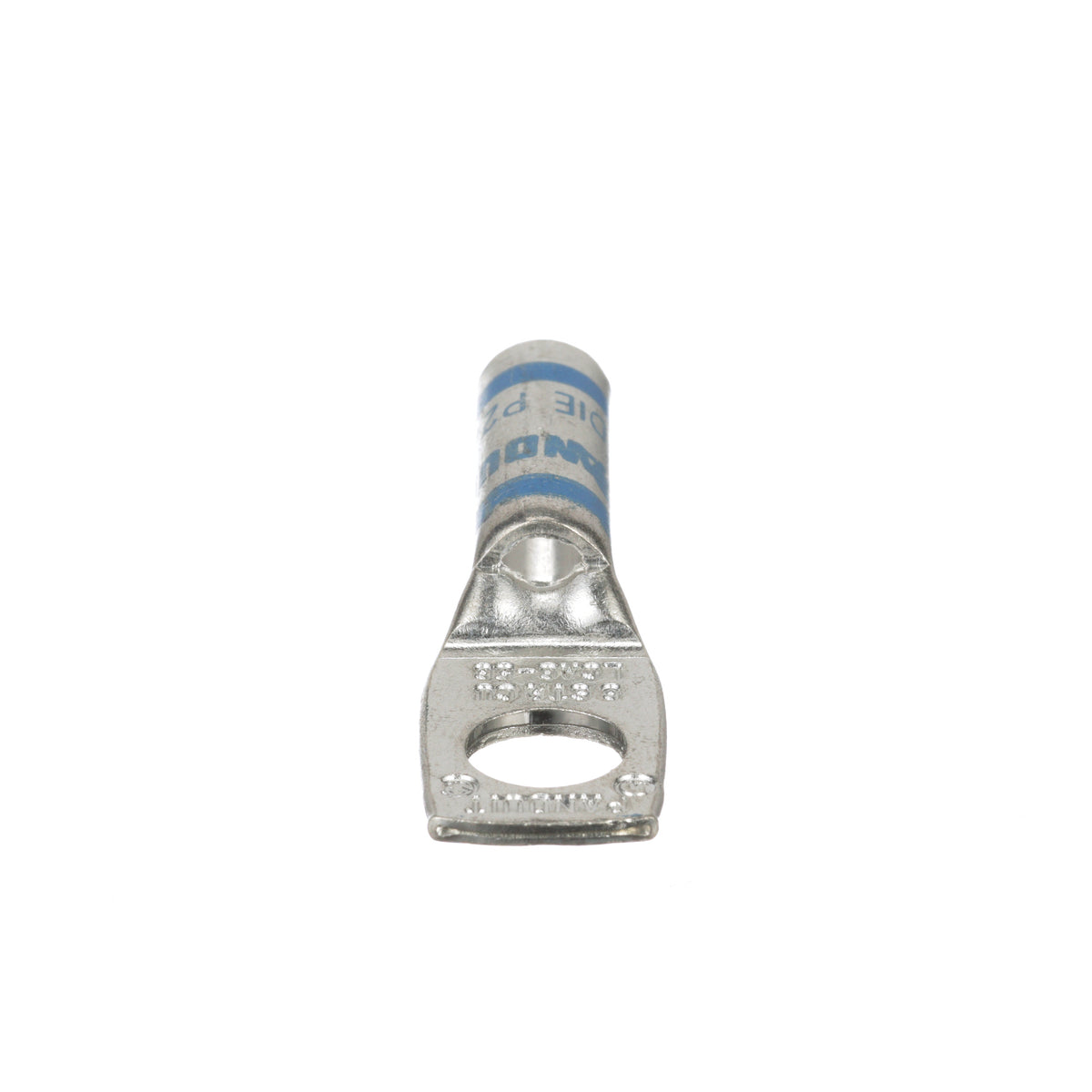

Panduit LCA6-56-L | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, One 0.31" Stud, PK50
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA6-56-L | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, One 0....
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
The LCA6-56-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conduct or insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 5/16 in Stud, Straight Tongue, 0.56 in W x 0.07 in THK Tongue, 1.73 in Overall Length, Standard/Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 42.954 in Mounting Hole, Copper, Blue
Panduit - LCA6-56-L - Features
- Straight tongue angle
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA6-56-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA6-56-L |
| Barrel | Standard |
| Bolt Hole | 5/16 Inch |
| Gauge | 6 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 6 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.56 |
| Tongue Width (mm) | 14.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 1.73 |
| Overall Length (mm) | 43.9 |
| UPC | 07498390007 |
