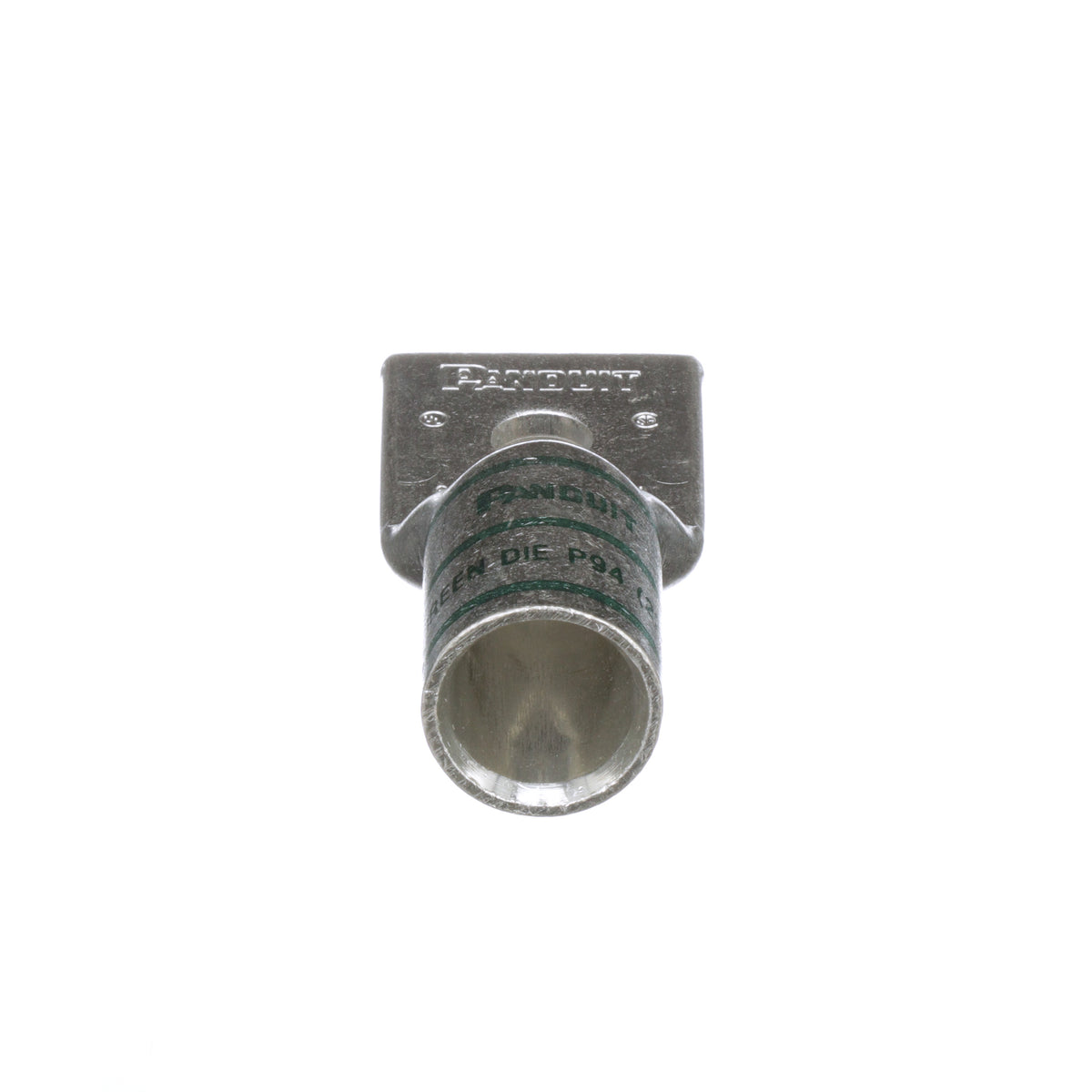

Panduit LCA600-12-6 | Pan-Lug Comp. Lug, 600, Tin Plt Copper, Strt, One 1/2" Stud, PK6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCA600-12-6 | Pan-Lug Comp. Lug, 600, Tin Plt Copper, Strt,...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.

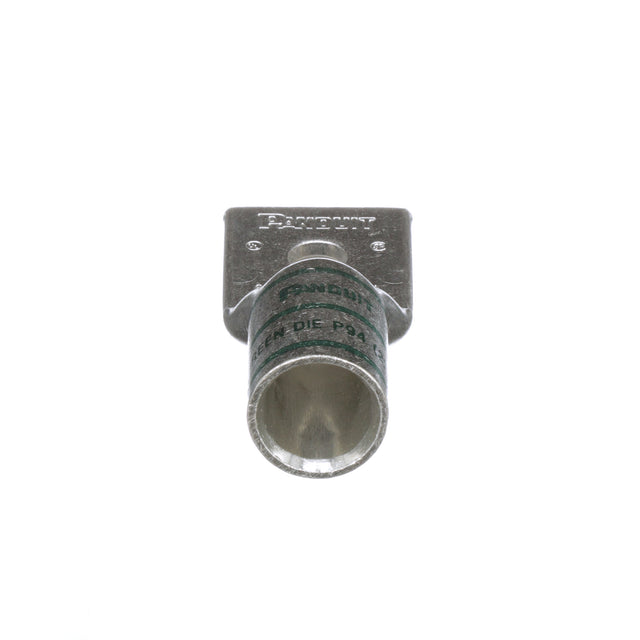

The LCA600-12-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full condu ctor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Panduit Compression Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 600 kcmil Conductor, Die Code: P94, 35 kV, 1/2 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 4.2 in Overall Length, Standard/Inspection Window Barrel, 0.92 in ID x 1.19 in OD x 1.75 in L Barrel, 1-13/16 in L Wire Strip, Tin Plated, 90 deg C, 1.81 in Mounting Hole, Copper, Green
Panduit - LCA600-12-6 - Features
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA600-12-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA600-12-6 |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 600Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (kcmil) | 600 |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Width (In.) | 1.7 |
| Tongue Width (mm) | 43.2 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 4.2 |
| Overall Length (mm) | 106.7 |
| UPC | 07498390069 |
