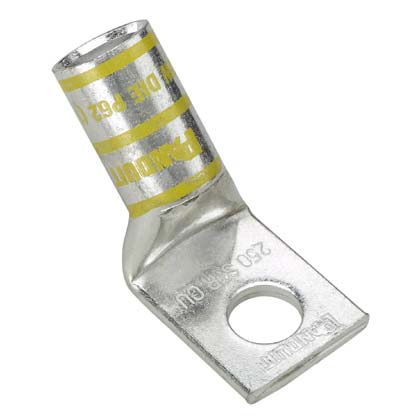

Panduit LCA600-12H-6 | CuLug, 600kcmil, 1/2 Stud, 45° PKG6
Description
Description
Connect large wires securely with our copper 1-hole tongue compression lug, its 45° angle offers increased flexibility and reliability in electrical applications.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCA, Copper/Stranded Conductor, 600 kcmil Conductor, Die Code: P94, 35 kVAC, 1/2 in Stud, 45 deg Tongue, 1.7 in W x 0.26 in THK Tongue, 3.76 in Overall Length, Standard with Inspection Window Barrel, 0.92 in ID x 1.19 in OD x 1.75 in L Barrel, 1-13/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 1.81 in Mounting Hole, Copper, Green
Panduit - LCA600-12H-6 - Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Specifications
Specifications
Panduit - LCA600-12H-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA600-12H-6 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (kcmil) | 600 |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Width (In.) | 1.7 |
| Tongue Width (mm) | 43.2 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 3.76 |
| Overall Length (mm) | 95.5 |
| UPC | 07498386994 |
