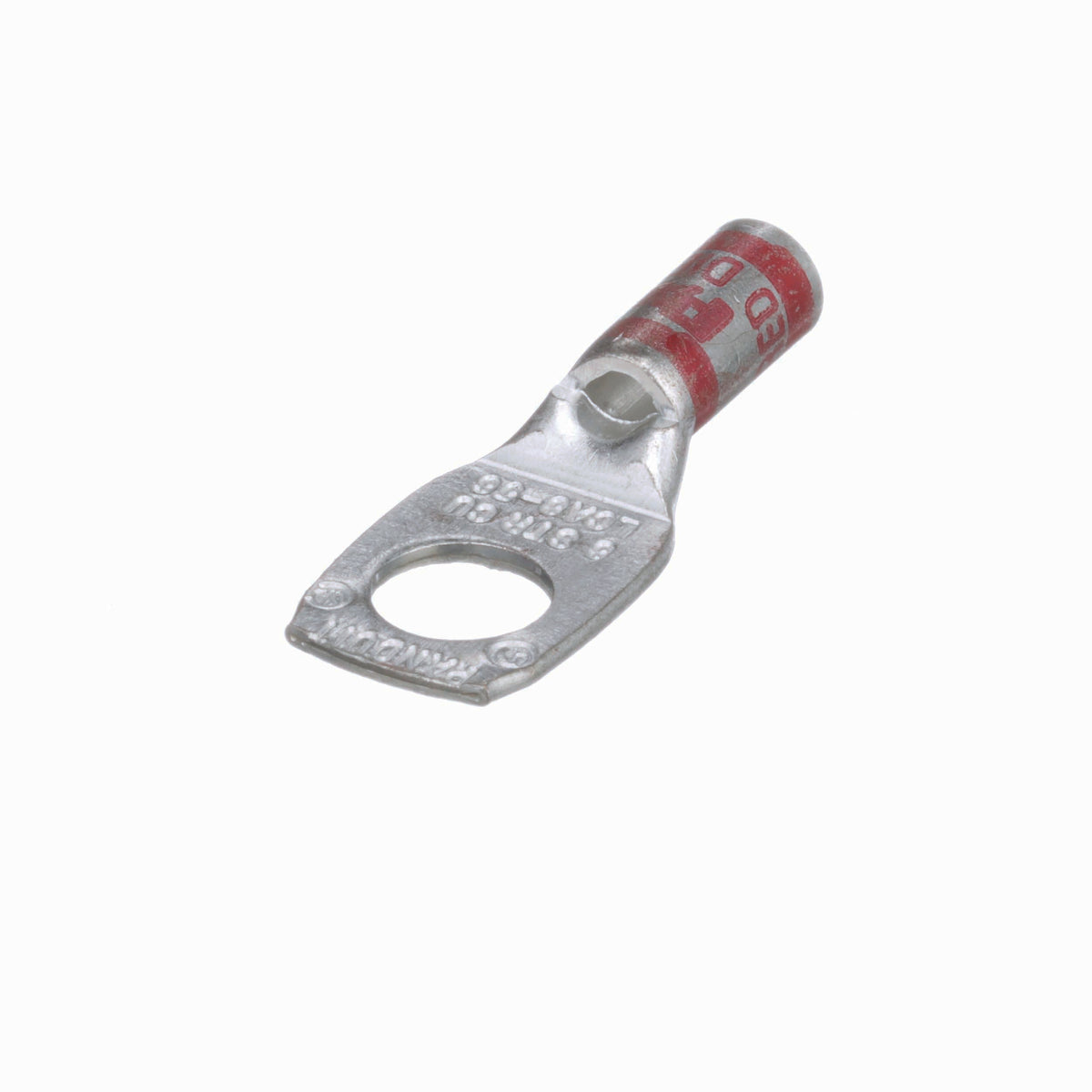

Panduit LCA8-56-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window lug, #8 AWG wire, 5/16 stud hole.
Panduit Compression Connectors Lug, 1-Hole, Copper Conductor, 8 AWG Conductor, 35 kV, 5/16 in Stud, Standard Tongue, 0.56 in W x 0.05 in THK Tongue, 1.46 in Overall Length, Standard Barrel Length with Inspection Window Barrel, 0.56 in L Barrel, Specifications: Straight Tongue, 90 deg C, 42952 in Mounting Hole, Red
Panduit - LCA8-56-L - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin coated to inhibit corrosion
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCA8-56-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCA8-56-L |
| Bolt Hole | 5/16 Inch |
| Gauge | 8 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 8 |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
| Tongue Width (In.) | 0.56 |
| Tongue Width (mm) | 14.2 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| UPC | 07498390087 |
Panduit - LCA8-56-L - Videos
| Panduit LCA8-56-L Video 1 | Click to View |
|---|
