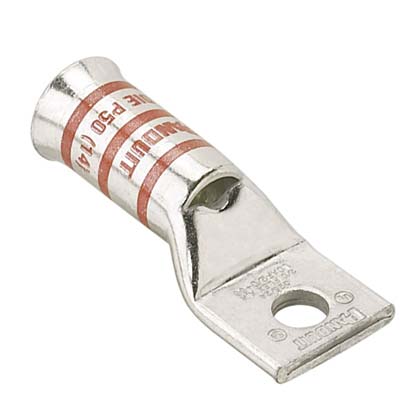

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 1 AWG Class K, M and DLO Conductor, Die Code: P42, 35 kV, 5/16 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 2 in Overall Length, Flared/Standard With Inspection Window Barrel, 0.39 in ID x 0.59 in OD x 0.94 in L Barrel, 1 in L Wire Strip, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Pink
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin-plated to inhibit corrosion
Panduit LCAF1-56-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355750 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2 |
| Overall Length (mm) | 50.8 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
