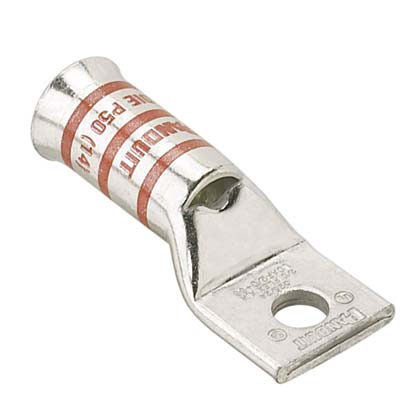

Panduit LCAF2/0-56-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, flared barrel, 2/0 AWG wire, 5/16 stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 2/0 AWG Class K, M and DLO Conductor, Die Code: P50, 35 kV, 5/16 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.49 in Overall Length, Flared/Standard With Inspection Window Barrel, 0.51 in ID x 0.73 in OD x 1.35 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Orange
Panduit - LCAF2/0-56-X - Features
- Can be used with flex conductor class: K, M, and Diesel Locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with PANDUIT die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT crimping tools and dies
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAF2/0-56-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAF2/0-56-X |
| Barrel | Standard |
| Bolt Hole | 5/16 Inch |
| Gauge | 2/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Flared |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (mm) | 0 |
| Class K Copper Flex Conductor Size (AWG) | 2/0 |
| Class M Copper Flex Conductor Size (AWG) | 2/0 |
| DLO Copper Flex Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 1.35 |
| Barrel Length (mm) | 34.3 |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| UPC | 07498355774 |
