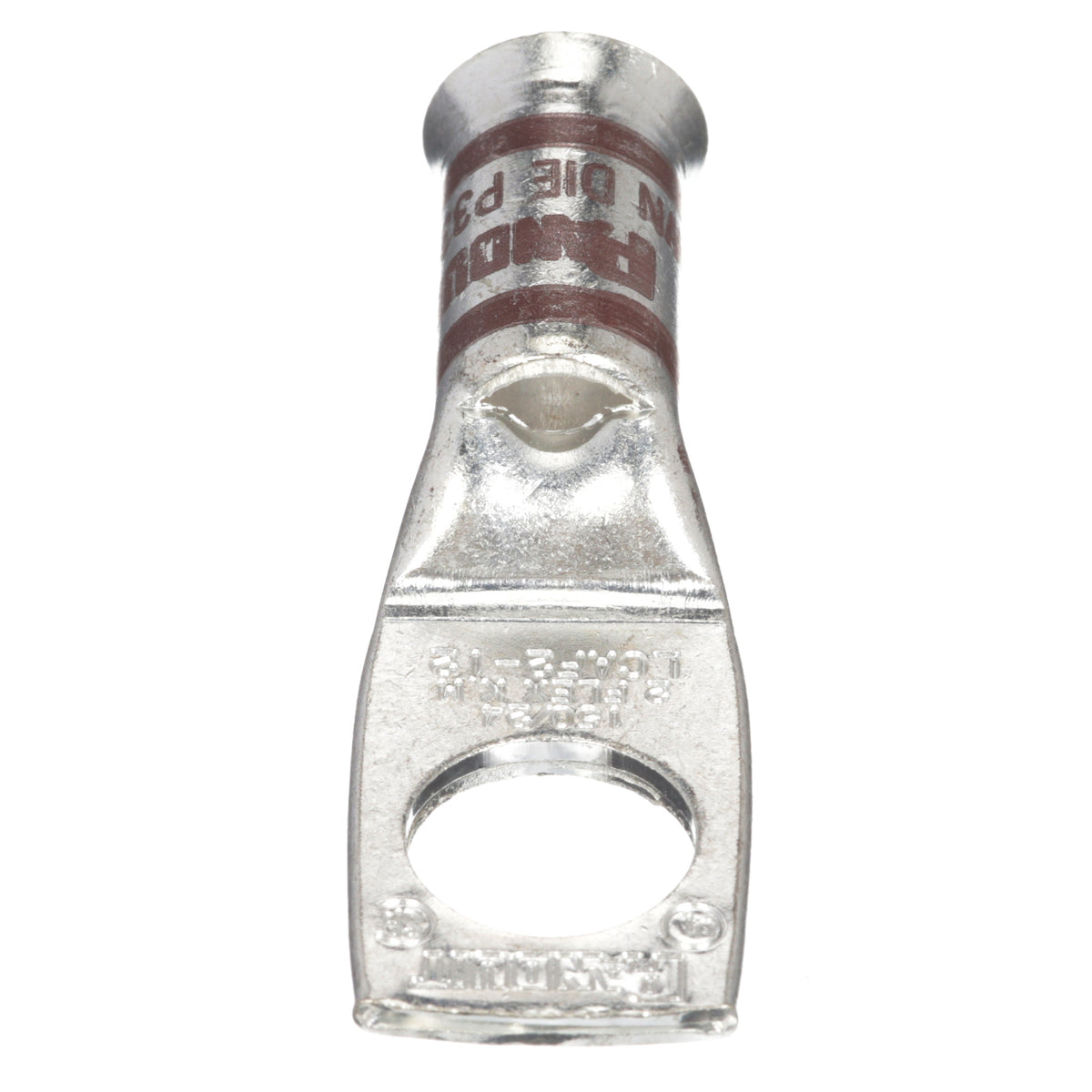

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 2 AWG Class K, M and DLO Conductor, Die Code: P33, 35 kV, 1/2 in Stud, Straight Tongue, 0.79 in W x 0.09 in THK Tongue, 2.23 in Overall Length, Flared/Standard With Inspection Window Barrel, 0.36 in ID x 0.55 in OD x 0.88 in L Barrel, 15/16 in L Wire Strip, 90 deg C, 15/16 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin-plated to inhibit corrosion
Panduit LCAF2-12-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355748 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 0.79 |
| Tongue Width (mm) | 20.1 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.23 |
| Overall Length (mm) | 56.6 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Wire Strip Length (mm) | 23.8 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
