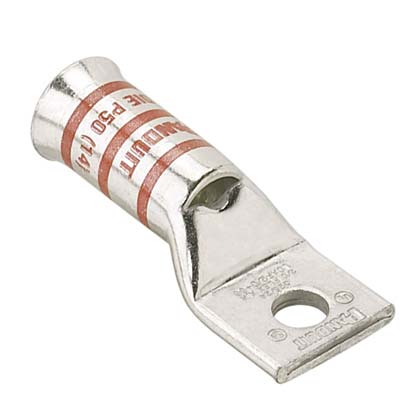

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 3/0 AWG Class K, M and DLO Conductor, Die Code: P54, 35 kV, 1/4 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 2.52 in Overall Length, Flared/Standard With Inspection Window Barrel, 0.57 in ID x 0.81 in OD x 1.35 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Purple
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin-plated to inhibit corrosion
Panduit LCAF3/0-14-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355777 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.35 |
| Barrel Length (mm) | 34.3 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.52 |
| Overall Length (mm) | 64 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Wire Strip Length (In.) | 14,375 |
| Wire Strip Length (mm) | 36.5 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
