Brand: Panduit
|
SKU:
PAN-LCAF300-38
Panduit LCAF300-38-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498374451
Regular price
$19.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAF300-38-6 | Tin-Plated Copper Compression Connectors - L...
Regular price
$19.78
Unit price
Brand: Panduit
|
SKU:
PAN-LCAF300-38
Regular price
$19.78
Unit price
Shipping calculated at checkout.
Description
Description

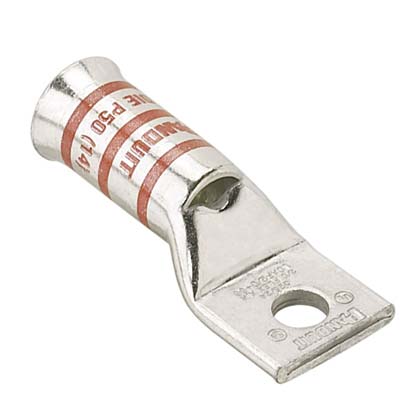

Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 300 kcmil Class K, M, 313.1 kcmil DLO Conductor, Die Code: P71, 35 kV, 3/8 in Stud, Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 3.37 in Overall Length, Flared/Standard With Inspection Window Barrel, 0.76 in ID x 1.1 in OD x 1.65 in L Barrel, 1-3/4 in L Wire Strip, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin-plated to inhibit corrosion
Panduit LCAF300-38-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498374451 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.65 |
| Barrel Length (mm) | 42 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.39 |
| Tongue Width (mm) | 35.3 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (In.) | 3.37 |
| Overall Length (mm) | 85.6 |
| Color Code | Red |
| Panduit Die Index Number | P71 |
| Wire Strip Length (In.) | 1.75 |
| Wire Strip Length (mm) | 44.5 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Panduit LCAF300-38-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498374451 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAF8-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAF300-38-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAF300-38-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498374451 Environmental Information
| Panduit's RoHS Statement | Download and View |
