Panduit LCAF4-14-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

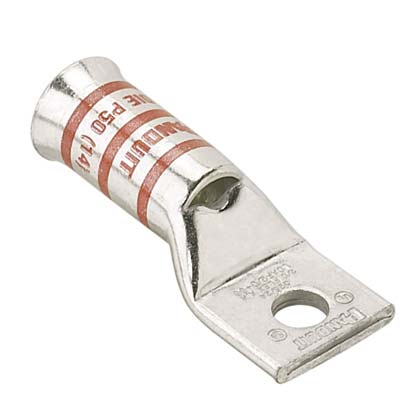

Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, flared barrel, #4 AWG wire, 1/4 stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 4 AWG Class K, M and DLO Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 1.63 in Overall Length, Flared/Standard With Inspection Window Barrel, 0.28 in ID x 0.46 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 7/8 in Mounting Hole, Tin Plated Copper, Gray
Panduit - LCAF4-14-L - Features
- Can be used with flex conductor class: K, M, and Diesel Locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with PANDUIT die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT crimping tools and dies
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAF4-14-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAF4-14-L |
| Bolt Hole | 1/4 Inch |
| Gauge | 4 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Flared |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Class K Copper Flex Conductor Size (AWG) | 4 |
| Class M Copper Flex Conductor Size (AWG) | 4 |
| DLO Copper Flex Conductor Size (AWG) | 4 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| UPC | 07498355742 |
