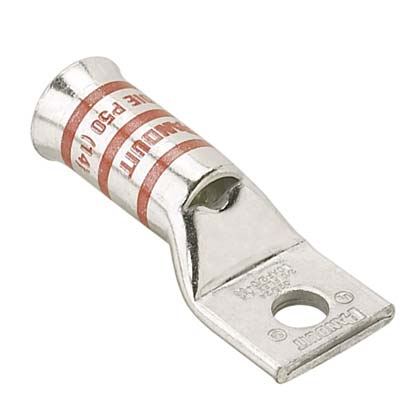

Panduit LCAF500-12-6 | Pan-Lug Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One 0.5" Stud
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAF500-12-6 | Pan-Lug Comp. Lug, 4/0, Flare, Tin Plt Coppe...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, flared barrel, 500 kcmil cable, 1/2 stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 500 kcmil Class K, M, 535.3 kcmil DLO Conductor, Die Code: P99, 35 kV, 1/2 in Stud, Straight Tongue, 1.89 in W x 0.26 in THK Tongue, 4.99 in Overall Length, Flared/Standard With Inspection Window Barrel, 1.03 in ID x 1.55 in OD x 2.28 in L Barrel, 2-5/16 in L Wire Strip, 90 deg C, 2-5/16 in Mounting Hole, Tin Plated Copper, Pink
Panduit - LCAF500-12-6 - Features
- Can be used with flex conductor class: K, M, and Diesel Locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color-coded barrels marked with PANDUIT die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT crimping tools and dies
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAF500-12-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAF500-12-6 |
| Bolt Hole | 1/2 Inch |
| Gauge | 500Kcmil (Aka Mcm) |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Flared |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (mm) | 0 |
| Class K Copper Flex Conductor Size (kcmil) | 500 |
| Class M Copper Flex Conductor Size (kcmil) | 500 |
| DLO Copper Flex Conductor Size (kcmil) | 535.3 |
| Barrel Length (In.) | 2.28 |
| Barrel Length (mm) | 58 |
| Tongue Width (In.) | 1.89 |
| Tongue Width (mm) | 48 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| UPC | 07498355671 |
