Brand: Panduit
|
SKU:
PAN-LCAF600-12-6

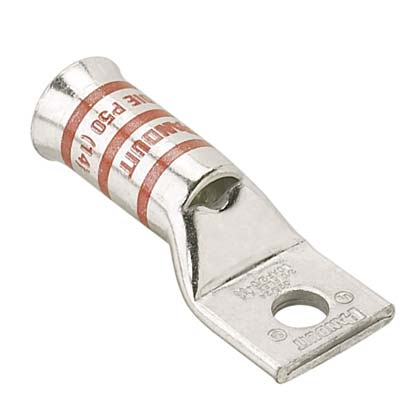

Panduit LCAF600-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355674
Regular price
$68.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAF600-12-6 | Tin-Plated Copper Compression Connectors - L...
Regular price
$68.56
Unit price
Brand: Panduit
|
SKU:
PAN-LCAF600-12-6
Regular price
$68.56
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Lug Compression Connector, 1-Hole, Series: LCAF, 646.4 kcmil Conductor, Die Code: P106, 35 kV, 1/2 in Stud, Straight Tongue, 1.95 in W x 0.3 in THK Tongue, 3.02 in Overall Length, Standard Barrel, 2.33 in L Barrel, 90 deg C, 2-3/8 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCAF600-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355674 Key Specs
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.33 |
| Barrel Length (mm) | 59.2 |
| Tongue Type | Standard Tongue Width |
| Tongue Width (In.) | 1.95 |
| Tongue Width (mm) | 49.5 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.3 |
| Tongue Thickness (mm) | 7.6 |
| Overall Length (In.) | 5.07 |
| Overall Length (mm) | 128.8 |
| Color Code | Black |
| Panduit Die Index Number | P106 |
| Wire Strip Length (In.) | 2,375 |
| Wire Strip Length (mm) | 60.3 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Panduit LCAF600-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355674 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAF8-10-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAF600-12-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAF600-12-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498355674 Environmental Information
| Panduit's RoHS Statement | Download and View |
