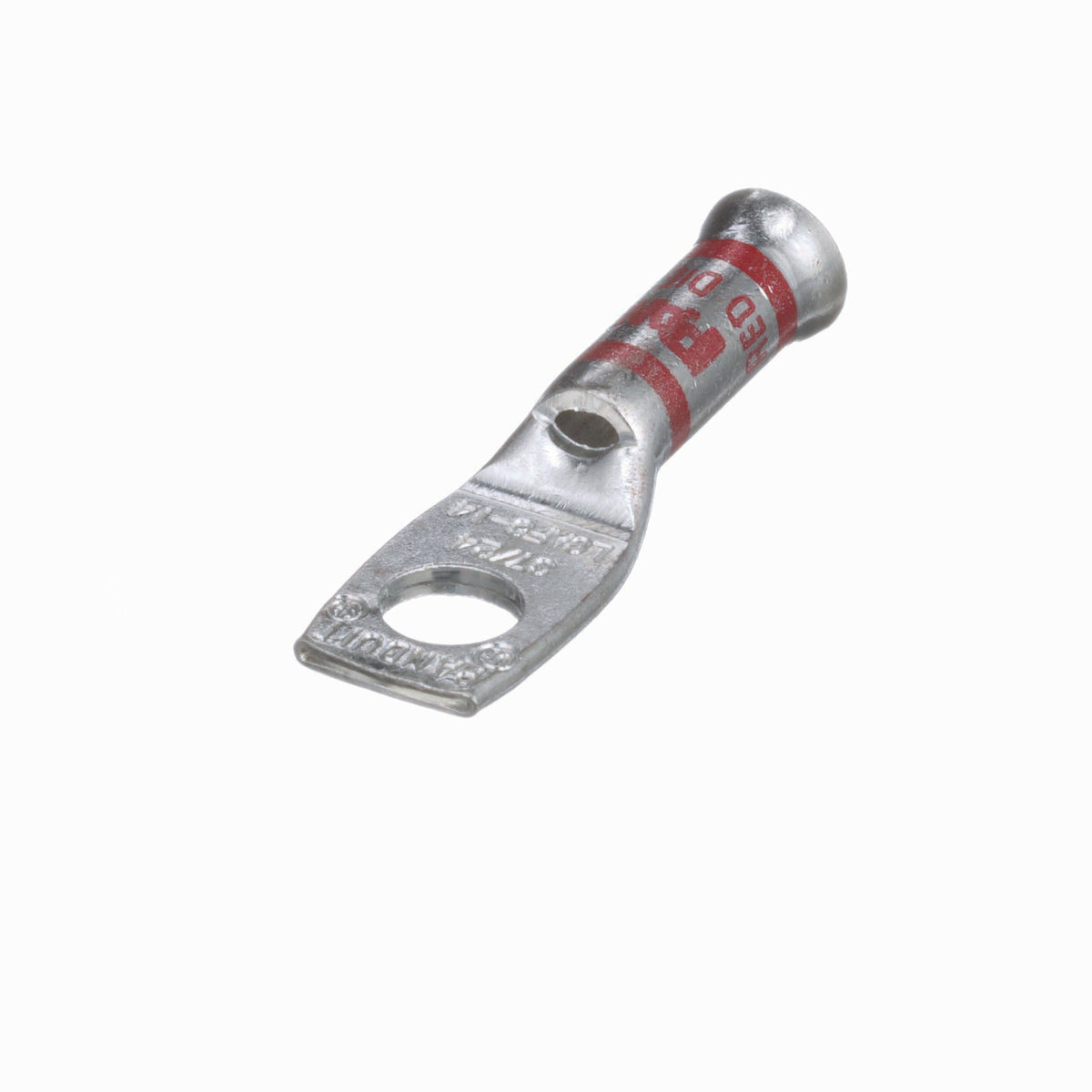

Panduit LCAF8-14-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Copper Conductor, 8 AWG Class K, M and DLO Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 1.54 in Overall Length, Flared/Standard With Inspection Window Barrel, 0.18 in ID x 0.32 in OD x 0.76 in L Barrel, 13/16 in L Wire Strip, 90 deg C, 13/16 in Mounting Hole, Tin Plated Copper, Red
Panduit - LCAF8-14-L - Features
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin-plated to inhibit corrosion
Specifications
Specifications
Panduit - LCAF8-14-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAF8-14-L |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Flared |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Class K Copper Flex Conductor Size (AWG) | 8 |
| Class M Copper Flex Conductor Size (AWG) | 8 |
| DLO Copper Flex Conductor Size (AWG) | 8 |
| Barrel Length (In.) | 0.76 |
| Barrel Length (mm) | 19.3 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| UPC | 07498355709 |
Panduit - LCAF8-14-L - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
