Brand: Panduit
|
SKU:
PAN-LCAN2-14

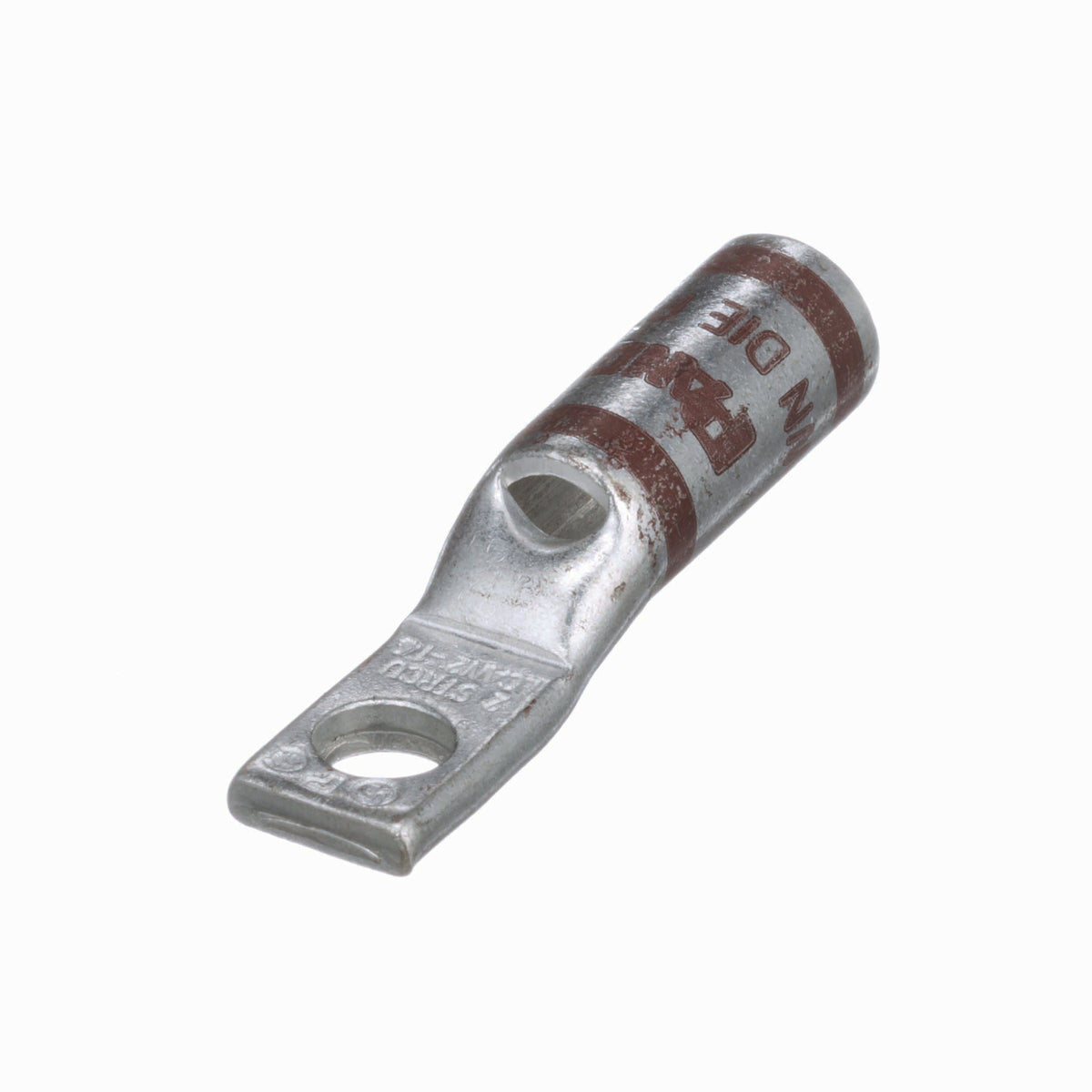

Panduit LCAN2-14-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360331
Regular price
$8.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAN2-14-Q | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$8.74
Unit price
Description
Description
Panduit Compression Lug, 1-Hole, Series: LCAN, Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, Narrow/Straight Tongue, 0.42 in W x 0.12 in THK Tongue, 1.77 in Overall Length, Standard/Inspection Window Barrel, 0.31 in ID x 0.42 in OD x 0.88 in L Barrel, 15/16 in L Wire Strip, Tin Plated, 90 deg C, 15/16 in Mounting Hole, Copper, Brown
Features + Benefits
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCAN2-14-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360331 Key Specs
| Copper Conductor Size (AWG) | #2 |
| Copper Conductor Size (kcmil) | 66.4 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 1.77 |
| Overall Length (mm) | 45 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Brown |
| Panduit Die Index Number | 33 |
Panduit LCAN2-14-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360331 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAN8-6-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAN2-14-Q | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAN2-14-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360331 Environmental Information
| Panduit's RoHS Statement | Download and View |
