Brand: Panduit
|
SKU:
PAN-LCAN350-38
Panduit LCAN350-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360345
Regular price
$17.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAN350-38-X | Tin-Plated Copper Compression Connectors - L...
Regular price
$17.31
Unit price
Brand: Panduit
|
SKU:
PAN-LCAN350-38
Regular price
$17.31
Unit price
Shipping calculated at checkout.
Description
Description

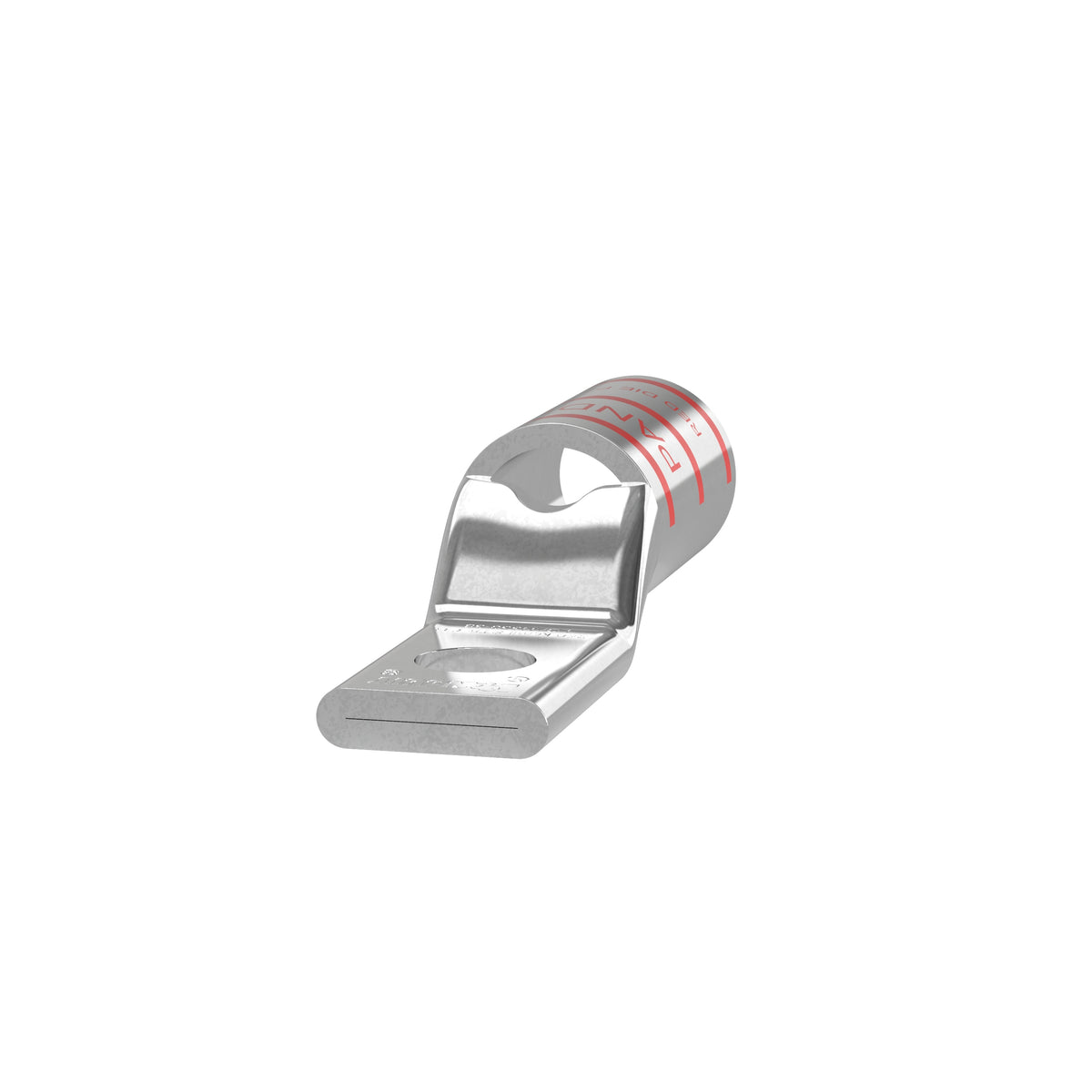

Panduit Compression Lug, 1-Hole, Series: LCAN, Stranded Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.88 in W x 0.21 in THK Tongue, 3 in Overall Length, Standard/Inspection Window Barrel, 0.7 in ID x 0.88 in OD x 1.44 in L Barrel, 1-1/2 in L Wire Strip, Tin Plated, 90 deg C, 1-1/2 in Mounting Hole, Copper, Red
Features + Benefits
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCAN350-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360345 Key Specs
| Inside Diameter (In.) | 0.88 |
| Inside Diameter (mm) | 22.35 |
| Outer Diameter (In.) | 0.88 |
| Outer Diameter (mm) | 22.35 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (kcmil) | 350 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.6 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 0.88 |
| Tongue Width (mm) | 22.4 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.21 |
| Tongue Thickness (mm) | 4.3 |
Panduit LCAN350-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360345 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAN8-6-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCAN350-38-Xrev01 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAN350-38-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498360345 Environmental Information
| Panduit's RoHS Statement | Download and View |
