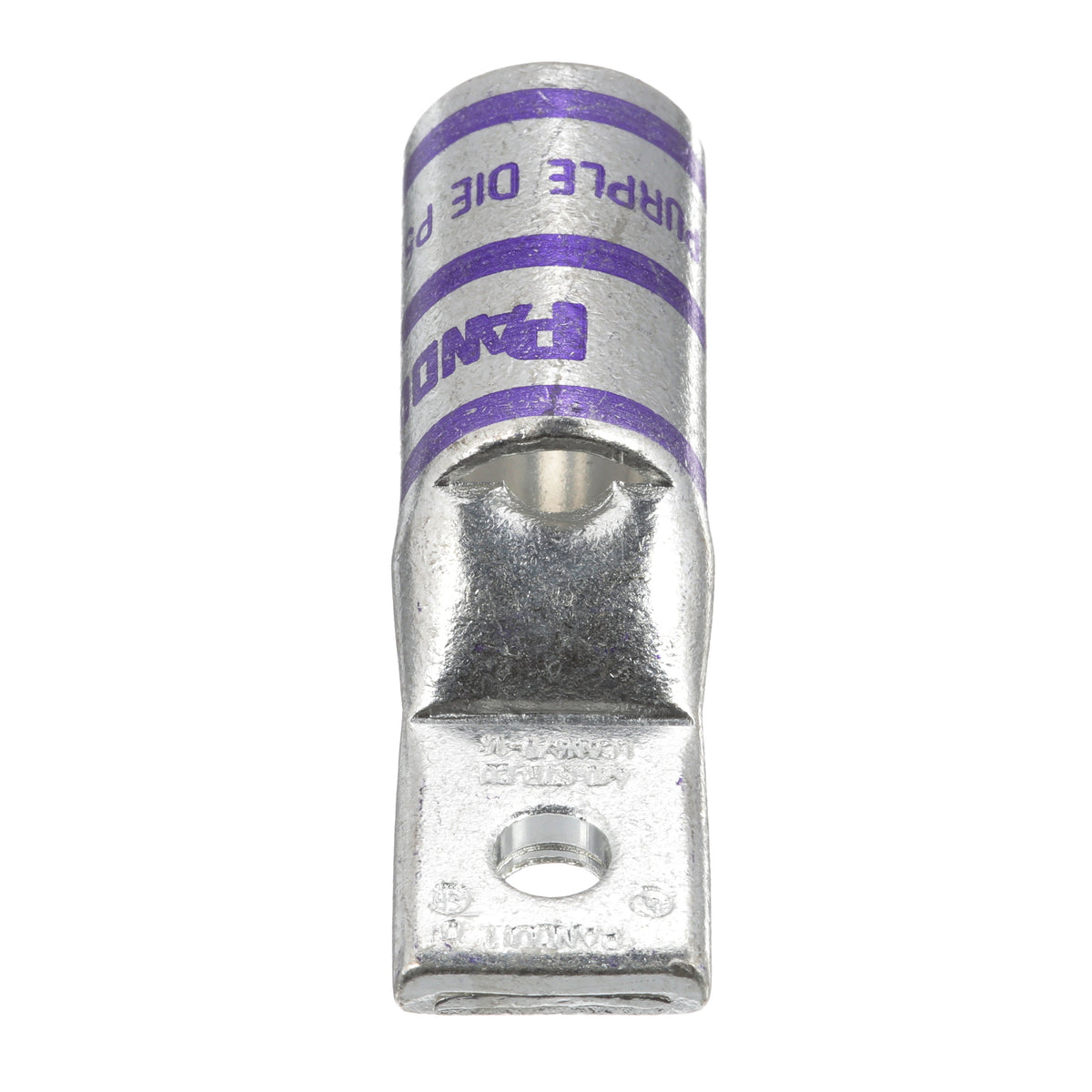

Panduit LCAN4/0-14-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window, narrow tongue lug, 4/0 AWG wire, 1/4" stud hole.
Panduit Compression Lug, 1-Hole, Series: LCAN, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/4 in Stud, Narrow/Straight Tongue, 0.71 in W x 0.18 in THK Tongue, 2.38 in Overall Length, Standard/Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 1.19 in L Barrel, 1-1/4 in L Wire Strip, Tin Plated, 90 deg C, 1-1/4 in Mounting Hole, Copper, Purple
Panduit - LCAN4/0-14-X - Features
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Narrow tongue width for limited space applications
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
Specifications
Specifications
Panduit - LCAN4/0-14-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAN4/0-14-X |
| Barrel | Standard |
| Bolt Hole | 1/4 Inch |
| Gauge | 4/0 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Narrow |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 4/0 |
| Barrel Length (In.) | 1.19 |
| Barrel Length (mm) | 30.2 |
| Tongue Width (In.) | 0.71 |
| Tongue Width (mm) | 18 |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.38 |
| Overall Length (mm) | 59.9 |
| UPC | 07498360339 |
Panduit - LCAN4/0-14-X - Videos
| Panduit LCAN4/0-14-X Video 1 | Click to View |
|---|
