Brand: Panduit
|
SKU:
10648822

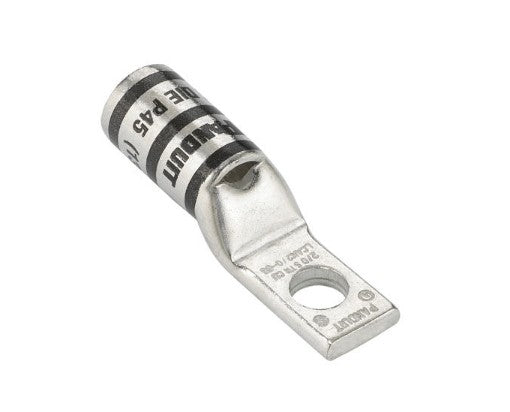

Panduit LCAN4-14-L | Pan-Lug Comp. Lug, 400, Narrow, Tin Plt Copper, Strt, One 0.25" Stud
Regular price
$6.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAN4-14-L | Pan-Lug Comp. Lug, 400, Narrow, Tin Plt Copper...
Regular price
$6.36
Unit price
Description
Description
Panduit LCAN4-14-L | Pan-Lug Comp. Lug, 400, Narrow, Tin Plt Copper, Strt, One 0.25" Stud
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
Specifications
Specifications
Panduit - LCAN4-14-L - Package Contents
| UPC | 07498360330 |
|---|---|
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0328 |
Panduit - LCAN4-14-L - Specifications
| Product Type | Compression Lug |
|---|---|
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Narrow |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Copper Conductor Size | 4 AWG |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.4 |
| Tongue Width (mm) | 10.2 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
