Brand: Panduit
|
SKU:
10470387

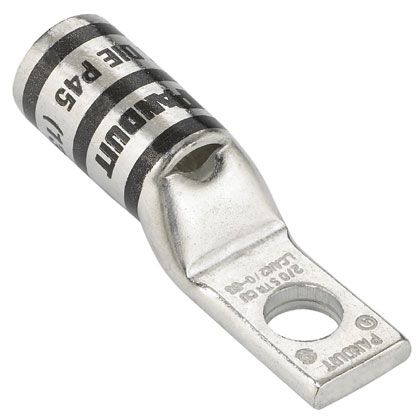

Panduit LCAN500-12-6 | Pan-Lug LCAN500-12-6 Comp. Lug, 500, Narrow, Tin Plt Copper, One 1/2" Stud
Regular price
$25.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAN500-12-6 | Pan-Lug LCAN500-12-6 Comp. Lug, 500, Narrow,...
Regular price
$25.06
Unit price
Description
Description
Panduit LCAN500-12-6 | Pan-Lug LCAN500-12-6 Comp. Lug, 500, Narrow, Tin Plt Copper, One 1/2" Stud
One-hole, standard barrel with window, narrow tongue lug, 500 kcmil cable, 1/2 stud hole.
Specifications
Specifications
Panduit - LCAN500-12-6 - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCAN500-12-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAN500-12-6 |
| Item Description | Pan-Lug LCAN500-12-6 Comp. Lug, 500, Narrow, Tin Plt Copper, One 1/2" Stud |
| Product Type | Compression Lug |
| Base Material | Copper |
| Copper Code Conductor Size (kcmil) | 500 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 3.57 |
| Overall Length (mm) | 90.2 |
| Finish/Coating | Tin-Plated |
| Standards Met | CSA certified C22.2 No. 65-13, UL listedf 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
| T & B Die Index Number | 87 |
| Wire Strip Length (In.) | 1 13/16 |
| Wire Strip Length (mm) | 46 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
Brand Name - LCAN500-12-6 - Package Information
| UPC | 07498360348 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0395 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - LCAN500-12-6 - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
