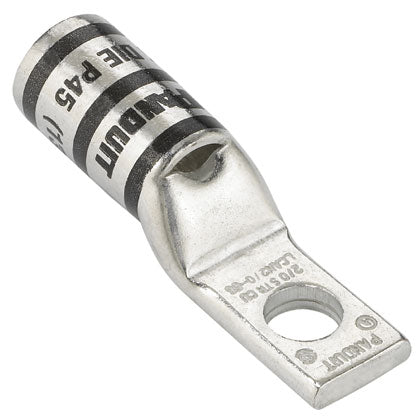

Panduit LCAN8-6-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, standard barrel with window, narrow tongue lug, #8 AWG wire, #6 stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAN, Copper/Stranded Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, #6 Stud, Narrow/Straight Tongue, 0.27 in W x 0.1 in THK Tongue, 1.24 in Overall Length, Standard/Inspection Window Barrel, 0.18 in ID x 0.27 in OD x 0.56 in L Barrel, Specifications: 5/8 in L Wire Strip, Tin Plated, 90 deg C, 5/8 in Mounting Hole, Copper, Red
Panduit - LCAN8-6-L - Features
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Specifications
Specifications
Panduit - LCAN8-6-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAN8-6-L |
| Barrel | Standard |
| Gauge | 8 Awg |
| Holes | 1 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Narrow |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 8 |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
| Tongue Width (In.) | 0.27 |
| Tongue Width (mm) | 6.9 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 1.24 |
| Overall Length (mm) | 31.5 |
| UPC | 07498360329 |
Panduit - LCAN8-6-L - Videos
| Panduit LCAN8-6-L Video 1 | Click to View |
|---|
