Brand: Panduit
|
SKU:
PAN-LCAS1/0-14F-X
Panduit LCAS1/0-14F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386917
Regular price
$9.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAS1/0-14F-X | Tin-Plated Copper Compression Connectors - ...
Regular price
$9.28
Unit price
Brand: Panduit
|
SKU:
PAN-LCAS1/0-14F-X
Regular price
$9.28
Unit price
Shipping calculated at checkout.
Description
Description

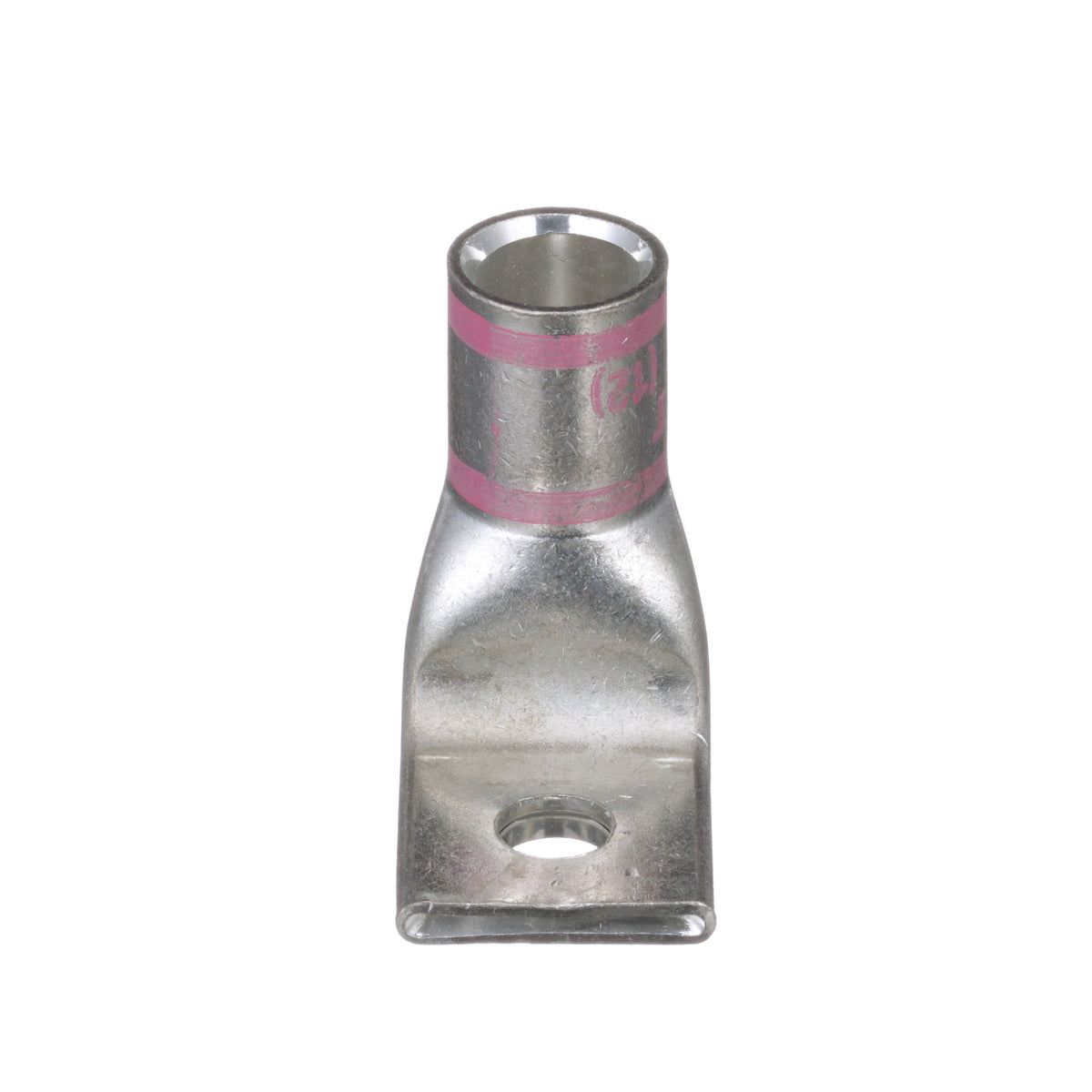

One-hole, short barrel with window lug, 1/0 AWG wire, 1/4 stud hole, 90 ° angle tongue.
Panduit LCAS1/0-14F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386917 Key Specs
| Copper Conductor Size (AWG) | 1/0 |
| Copper Conductor Size (kcmil) | 106 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 1.45 |
| Overall Length (mm) | 36.8 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
Panduit LCAS1/0-14F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386917 Data Sheets
| Part Drawings | Part Drawing - PDF - LCAS1_0-14F-X | Download and View |
| Catalog Cut Sheets | Code Conductor, One-Hole, Short Barrel Window lug 90° | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCAS1/0-14F-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386917 Environmental Information
| Panduit's RoHS Statement | Download and View |
