Brand: Panduit
|
SKU:
LCAS1-38-E
Panduit LCAS1-38-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498322535
Regular price
$7.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAS1-38-E | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$7.59
Unit price
Description
Description

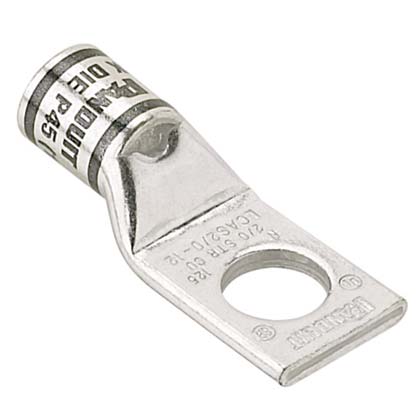

One-hole, short barrel with window lug, #1 AWG wire, 3/8 stud hole.
Panduit LCAS1-38-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498322535 Key Specs
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.59 |
| Barrel Length (mm) | 15 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 1.7 |
| Overall Length (mm) | 43.2 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
Panduit LCAS1-38-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498322535 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCAS8-10-L Product Page | Download and View |
| System Bundle | CPSB06-WW-ENG: Power Systems Bundle | Download and View |
| Part Drawings | Part Drawing - PDF - LCAS1-38-E | Download and View |
Panduit LCAS1-38-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498322535 Environmental Information
| Panduit's RoHS Statement | Download and View |
