Brand: Panduit
|
SKU:
1035255
Panduit LCAS1-38F-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498386913
Regular price
$109.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAS1-38F-E | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$109.49
Unit price
Description
Description

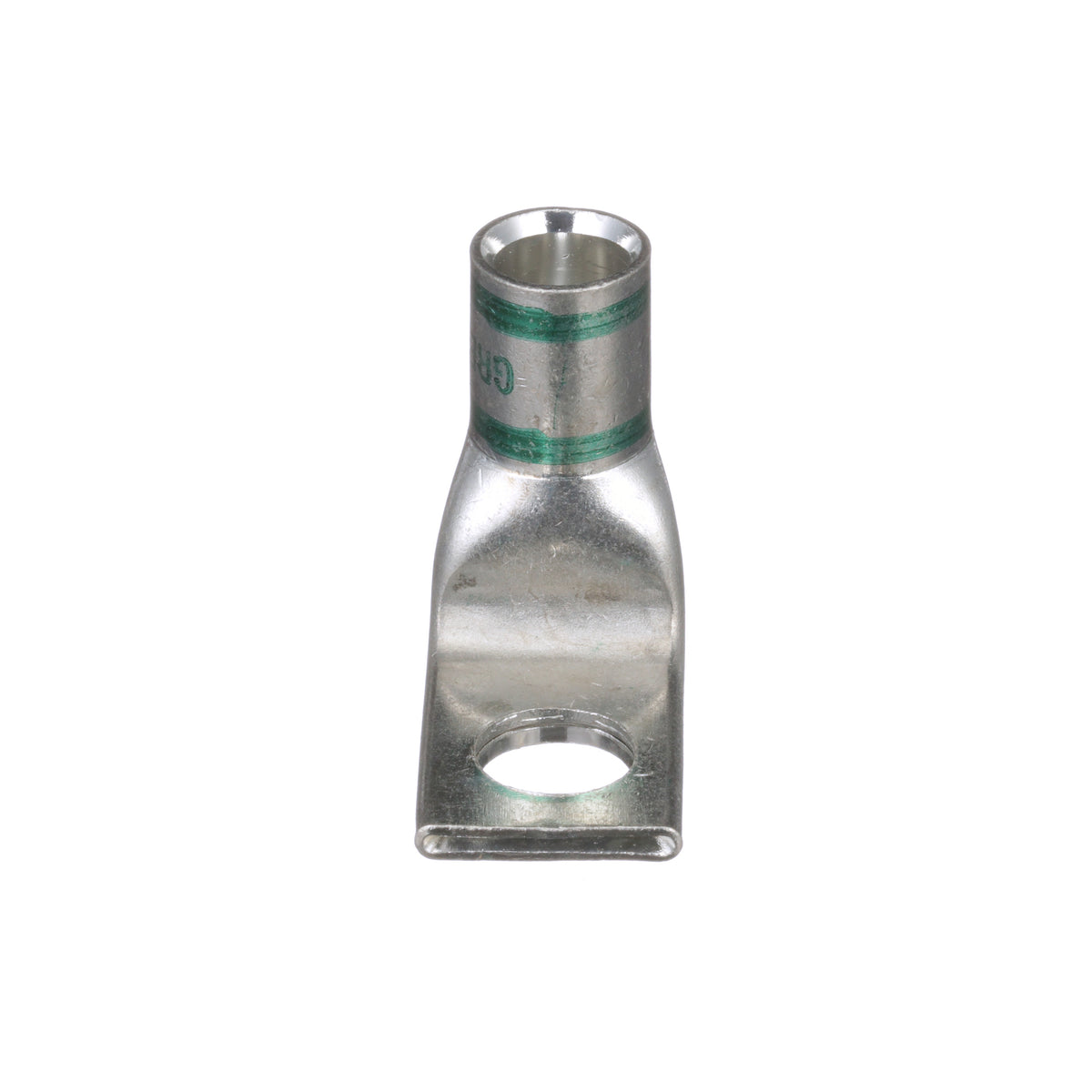

One-hole, short barrel with window lug, #1 AWG wire, 3/8 stud hole, 90 ° angle tongue.
Panduit LCAS1-38F-E Key Specs
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.59 |
| Barrel Length (mm) | 15 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 1.51 |
| Overall Length (mm) | 38.4 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (In.) | 42,675 |
| Wire Strip Length (mm) | 17.5 |
| Part Features | Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3. |
Panduit LCAS1-38F-E Data Sheets
| Part Drawings | Part Drawing - PDF - LCAS1-38F-E | Download and View |
| Catalog Cut Sheets | Code Conductor, One-Hole, Short Barrel Window lug 90° | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
