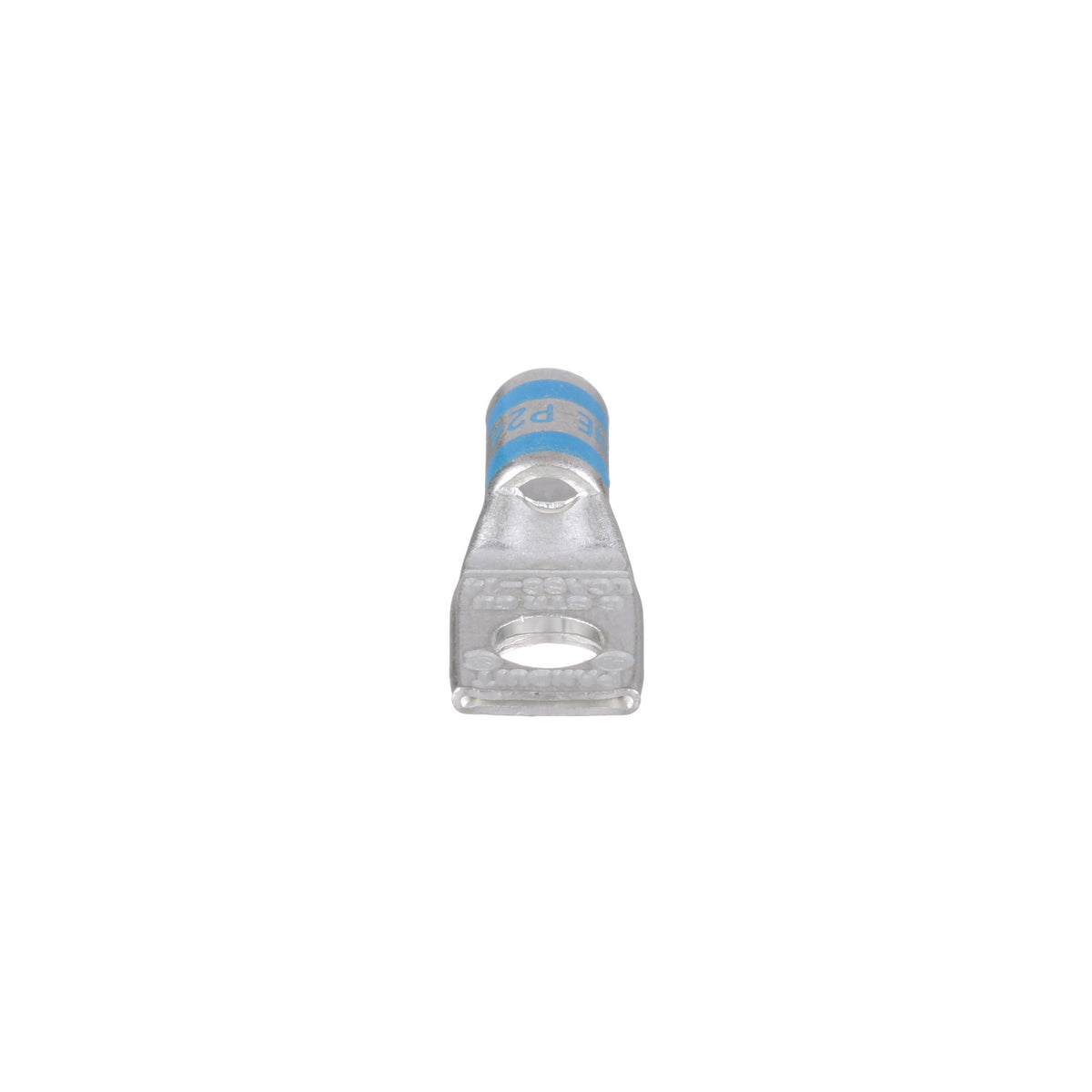

Panduit LCAS6-14-L | Pan-Lug Comp. Lug, 6, Short, Tin Plt Copper, One 1/4" Stud, PK50
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCAS6-14-L | Pan-Lug Comp. Lug, 6, Short, Tin Plt Copper, O...
Description
Description
Reliable, one-hole solution for connecting large wires in electrical applications, with our copper 1-hole straight tongue compression lug.
One-hole, short barrel with window lug, #6 AWG wire, 1/4" stud hole.
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAS, Copper/Stranded Conductor, 6 AWG Conductor, Die Code: P24, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 1.28 in Overall Length, Short with Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.48 in L Barrel, 9/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 9/16 in Mounting Hole, Copper, Blue
Panduit - LCAS6-14-L - Features
- Short barrel for limited space applications
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Short barrel for limited space applications
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
Specifications
Specifications
Panduit - LCAS6-14-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCAS6-14-L |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Short |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 0 |
| Copper Code Conductor Size (AWG) | 6 |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.28 |
| Overall Length (mm) | 32.5 |
| UPC | 07498322522 |
